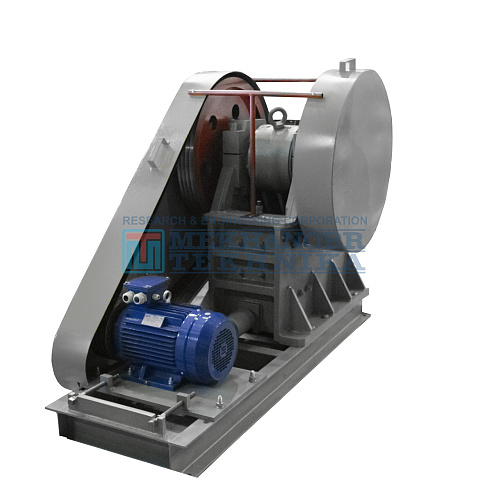

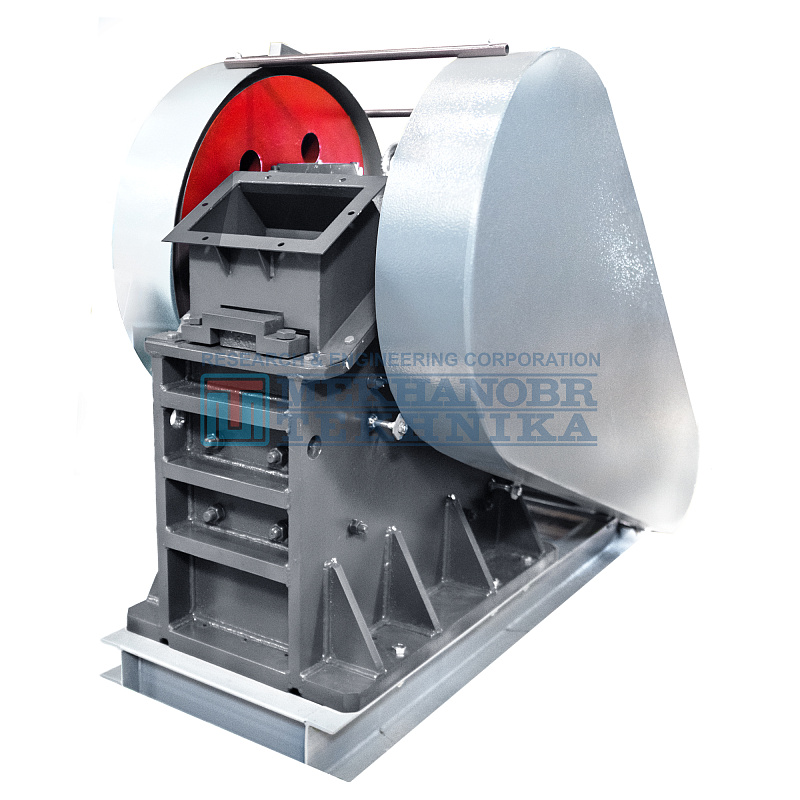

Jaw crusher 180х250

On order

Price on request

Description

Purpose:

Crusher is designed for crushing the rocks and ores with compressive resistance of up to 250 MPa.

Scope of application:

Crushers can be used both as standalone units and together with vibrating cone crushers at the first crushing stage: JC 180X250 before the KID-300 vibrating cone crusher.

Using two crushers at stage-by-stage crushing provides for high degree of splitting to the final size of 2 mm.

The units on the mobile crushing plants (MCP) can be used.

Delivery set: JC 180X250 jaw crusher, operation manual, data sheet.

Foundation requirements: No specific foundation requirements.

Dynamic loads: The dynamic loads from the crusher to the floor are max 25% of the crusher mass.

The crusher complies with TU 4843-066-11114244-2010 “Jaw crushers”.

Stock: time of manufacture to order - 3 months.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specifications*	JCS 180x250
Feed opening size, mm :	180x250
Crushed product size with minimum aperture of d50, mm :	8
Efficiency, kg/h, max :	5000
Motor power, kW :	7.5
Max. feed size, mm :	170
Discharge aperture size, mm :	5-30
*Overall dimensions, max, mm:*
Length, mm :	1800
Height, mm :	1295
Width, mm :	775
Mass, kg :	1400

* - the efficiency depends on the discharge aperture and raw material strength

Questionnaire

For purchasing of the equipment you are interested in, please use the application form on the web-site or order a callback, and our specialists will prepare all necessary information and consult you on all kinds of equipment.

For more full-on selection of the equipment and consultation of the technical specialist, please fill in the questionnaire and send it using this form.

Questionnaire_vibrating jaw crushers (VJC)

121.1 Кб

Length, mm	2050
Height, mm	1630
Width, mm	1120
Mass, kg	3000
