Separators and demagnetizers

The magnetic concentration processes based on the difference in magnetic properties of the separated components are widely used for nonferrous, ferrous and rare ore concentration, strongly magnetic weight material regeneration, iron admixtures removal from quartz sands, abrasives, ceramic raw materials, flux metals, vanadium-containing slags and  other materials, as well  as food products.

Features and  advantages of magnetic separation

• production of high-quality concentrate with high recovery of useful component;
• environmentally friendly process;
• high selectivity and versatility;
• low energy consumption.

Features of separators:

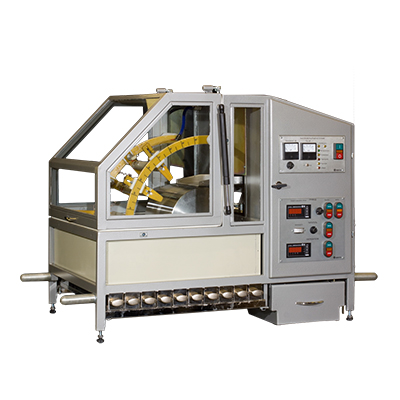

EVS separators

They are used for loose materials of −6+0.075 mm (class -0.075 mm, max  20%).

Scope of application:

• materials purification from magnetic additives (abrasives, quartz sand, ceramics, feldspar, molding sand, etc.);
• various ore concentration to obtain the products similar to monomineralic ones in content (andradite, nepheline, pegmatite, wollastonite, vermiculite):
• electronic scrap processing;
• rough concentrate upgrading (ilmenite, wolframite, tantalic, stannane, loparite, manganese, diamond-containing, gold-containing, zircon, cyanite, rutile, niobium (pyrochlore), baddeleyite);
• laboratory research.

EVS-V series separators

Scope of application:

• non-free-flowing materials of 0.040 mm (up to70%) (artificial graphite based press powders , asbestic products, white fused alumina microgrit, baddeleyite rough concentrate);
• grain-size materials of 1+0.075 mm with small (up to 1%) content of low-magnetic admixtures (quartz sand, quartz grit, feldspar product, periclase).

EVM series separators

They are used for materials of 5+0.1 mm.

Scope of application:

• ore concentration (diamond-containing, oxidated metal ores);
• rough concentrate upgrading (ilmenite, manganese, rare metal ore concentrates).

ERM series separators

They are used for materials of 0.5+0.02 mm. .

Scope of application:

• purification from magnetic admixtures of fine glass, ceramic, abrasive raw materials, as well as а quartz sand;
• finely disseminated ore concentration (ilmenite-zircon, ilmenite, oxidized iron, manganese ores, etc.).

PBST series separators

They are used for materials of 30+0 mm.

Scope of application:

• purification of various materials from strongly magnetic additives (quartz sand, glass raw materials, white fused alumina, firebricks, tungsten-cobalt powders (for powder metallurgy), tyre and nickel-cadmium derived products);
• protection of EVS and ERS-V series separators from strongly magnetic additives;
• fine magnetite ore concentration with high-quality iron concentrate production;
• cobalt-containing slag concentration.

EBM  and PBM  series separators

They are used for materials of 6 + 0 mm.

Scope of application:

• protection of EVM and ERM series separators from strongly magnetic additives;
• regeneration of heavy suspensions (ferrosilicon and magnetite);
• magnetite ore concentration;
• iron removal from various materials;
• regeneration of nickel-cobalt magnet grinding waste.

Demagnetizers

Scope of application:

• deflocculation of strongly magnetic particles (magnetite, ferrosilicium, etc.) to improve classification, deshaling, filtration, as well as to ensure stability of heavy ferromagnetic suspensions.

The separators (magnetic, electromagnetic, electrostatic) by REC "Mekhanobr-Tekhnika" are the high-tech efficient devices for concentration of a wide range of minerals that are characterized by simple design, reliable, efficient and easy operation.

For purchasing of the equipment you are interested in or for more detailed information, please  contact us by phone  +7 (812) 331-02-42 and our specialists will prepare all necessary information and consult you on all kinds of equipment.

REC Mekhanobr Tekhnika reserves the right to change the equipment specifications.
