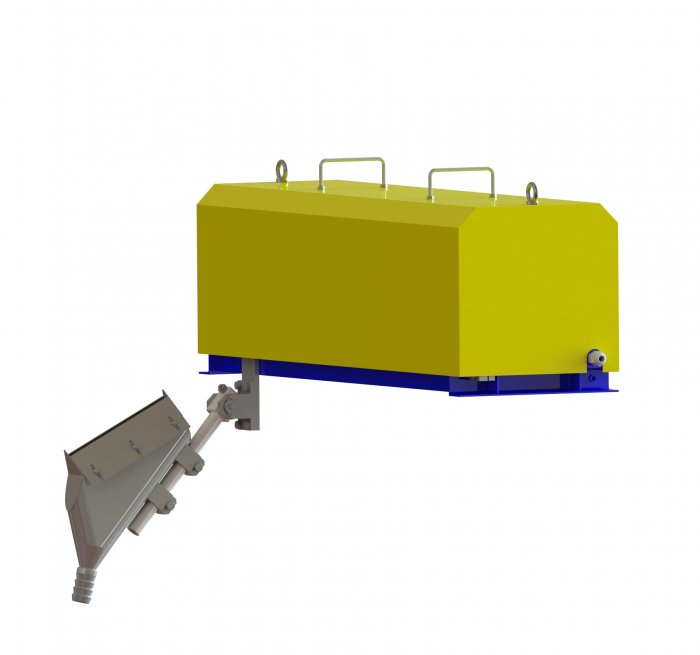

      Sampler 66OP-01

      • Sampler 66OP-01
      Order equipment
      • Description
      • Specifications
      Description

      The sampler is designed for pulp sampling according to GOST 14780 at concentration plants and can be used in automatic sampling systems and sample transportation to the express laboratory.

      Sampling is made from gravity-flowing process flows from the chutes in the points of their fracture and jet drop.

      For purchasing of the equipment you are interested in or for more detailed information, please  contact us by phone +7 (812) 331-02-42.

      Specifications
      Characteristics Value
      Blade working stroke during testing (at constant speed), mm  1200±3
      Blade speed, m/s 0.55±0.05
      Number of cutoffs per hour 1-360
      Blade length, mm. 250±1
      Aperture width adjustment limits, mm 2-35
      Blade turn angle for setting on the flow in the vertical plane, degree, max 90
      Test pulp flow rate, m3/h, max. 200
      Solid content in pulp, %, max 60
      Max particle size, no more than 1/2 of the blade aperture width
      Test flow section, mm, max: width / height 600 / 120
      Sampler drive:
      motor type
      power, kW
      speed, rpm
      reducing gear type

      AIR63V4U3
      0.37
      1,420
      2Ч40-10-52-1-2-У4
      Power supply voltage ≈380V, 3 phases
      Overall dimensions (without knife):
      length, mm 1404
      width, mm
      362
      height ,mm 444
      Mass, kg 110

      Share
      Back to list
      • Laboratory equipment
      • Industrial equipment
        • Crushers
        • Screens and vibratory sieves
        • Separators and demagnetizers
        • Feeders
        • Samplers
          • Sampler 63OP
          • Sampler 66OP
          • Sampler 66OP-01
        • Spare parts
      • Powder materials
      • Waste processing solutions
      • E-catalogues
      • Equipment applicability
      Аsk our technician a question
      About company
      News
      History
      Our achievements
      Our possibilities
      Managers

      Scientific and educational center
      Media
      Docs
      Reviews
      Partners and Customers
      Requisites
      Site map
      Equipment
      Laboratory equipment
      Industrial equipment
      Powder materials
      Waste processing solutions
      E-catalogues
      Equipment applicability
      Scientific project of the RSF
      School of Young Scientists
      Our contacts

      8 (800) 550-35-56 8 (812) 331-02-42
      sales@mtspb.com
      St. Petersburg, 22nd line, 3, bld. 5
      © «Mekhanobr-Tekhnika». The materials published on the site, including photo, video and text materials can be used only with the written consent of REC "Mekhanobr-Tekhnika” (JSC). Using the materials without permit shall be treated as violation of exclusive rights and can entail responsibility as provided by the current RF legislation.
      Site development —
      Download catalogues
