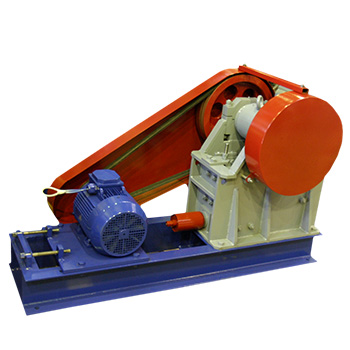

      Jaw crushers

      Crushed product particle distribution with closed side setting d50, mm Feed opening size, mm Max. feed size, mm Motor power, kW Efficiency, m3/h Discharge opening size, mm
      2JCS 100x200 Crushed product particle distribution with closed side setting d50, mm 0-2 Feed opening size, mm 100x200 Max. feed size, mm 90 Motor power, kW 5.5 Efficiency, m3/h 0.07-0.15* Discharge opening size, mm 2-6
      JCS 180х250 Crushed product particle distribution with closed side setting d50, mm 10 Feed opening size, mm 180x250 Max. feed size, mm 170 Motor power, kW 7.5 Efficiency, m3/h 1.5-5* Discharge opening size, mm 5-30
      JC 250х400 Crushed product particle distribution with closed side setting d50, mm 30-80 Feed opening size, mm 250x400 Max. feed size, mm 220 Motor power, kW 18.5 Efficiency, m3/h 3-17* Discharge opening size, mm 20-60
      * The efficiency depends on the discharge aperture and raw material strength


      Purpose

      The industrial jaw crushers of small typical sizes are designed for dry disintegration (mechanical breaking) of medium- and  low-hard solid, brittle raw materials (ferrous and  nonferrous raw materials, construction materials, solid waste and  etc.).

      The jaw crushers are characterized by simple design and  reliable operation placing  them among the most common  kinds of crushing equipment

      Main fields of application

      Crushing of black ores, nonferrous metals, slags, ferroalloys, as well as   using in non-ore mining industry (crushed stone and construction materials  production), chemical and  other industries.

      Principle of operation

      Solid material breaking in  the jaw crushers occurs mainly due to  the compressive forces generated between the mobile and  immovable jaw of the crusher. There are two main kinds of the jaw crushers   - with simple and  with   complex motion of the jaw that are usually marked as JC and  JCS. In the crushers  with  simple motion of the jaw, the latter makes the oscillating and reciprocating movement, the material to be crushed flows through the crushing chamber by gravity and discharges through the discharge aperture with the controllable aperture. In the crushers  with  complex motion of the jaw, the latter simultaneously makes the reciprocating and elliptical movement. Due to this, the  compressive and partially shear  forces are applied to the crushed material, and  the material movement in the crushing chamber is also improved that have  positive effect on the crusher performance. During crushing in the JCS jaw crusher , due to the pulverizing effect, some more fine material is formed than in the JC  crushers  that is to be taken into account during brittle material processing.

      REC "Mekhanobr-Tekhnika"  sells the spare parts for the  JC crushers: jaw plates, toggles, cheek plates,  etc.

      For purchasing of the equipment you are interested in or for more detailed information, please  contact us by phone +7 (812) 331-02-42.


      • Laboratory equipment
      • Industrial equipment
        • Crushers
          • Vibrating cone crushers
          • Vibrating jaw crusher
          • Jaw crushers
            • 2JCS 100x200
            • JCS 180х250
            • JC 250х400
          • Hammer crushers
          • Roll crushers
          • Rotor shredders
        • Screens and vibratory sieves
        • Separators and demagnetizers
        • Feeders
        • Samplers
        • Spare parts
      • Powder materials
      • Waste processing solutions
      • E-catalogues
      • Equipment applicability
      Аsk our technician a question
      About company
      News
      History
      Our achievements
      Our possibilities
      Managers

      Scientific and educational center
      Media
      Docs
      Reviews
      Partners and Customers
      Requisites
      Site map
      Equipment
      Laboratory equipment
      Industrial equipment
      Powder materials
      Waste processing solutions
      E-catalogues
      Equipment applicability
      Scientific project of the RSF
      School of Young Scientists
      Our contacts

      8 (800) 550-35-56 8 (812) 331-02-42
      sales@mtspb.com
      St. Petersburg, 22nd line, 3, bld. 5
      © «Mekhanobr-Tekhnika». The materials published on the site, including photo, video and text materials can be used only with the written consent of REC "Mekhanobr-Tekhnika” (JSC). Using the materials without permit shall be treated as violation of exclusive rights and can entail responsibility as provided by the current RF legislation.
      Site development —
      Download catalogues
