Dry electromagnetic roll separators (EVS)
| Efficiency, t/h | Feed size, mm | Magnetic induction in the working area on the roll surface, T | Roll working part diameter, mm | Roll working part length, mm | Number of rolls, pcs. | Rotor speed, min-1, within | Drive power, kW | Electromagnetic system consumed power, kW | |
|---|---|---|---|---|---|---|---|---|---|
| EVS 28/9 | Efficiency, t/h up to 0.6 | Feed size, mm up to 6 | Magnetic induction in the working area on the roll surface, T 1.7 | Roll working part diameter, mm 280 | Roll working part length, mm 90 | Number of rolls, pcs. 1 | Rotor speed, min-1, within 65-250 | Drive power, kW 1.5 | Electromagnetic system consumed power, kW 0.8 |

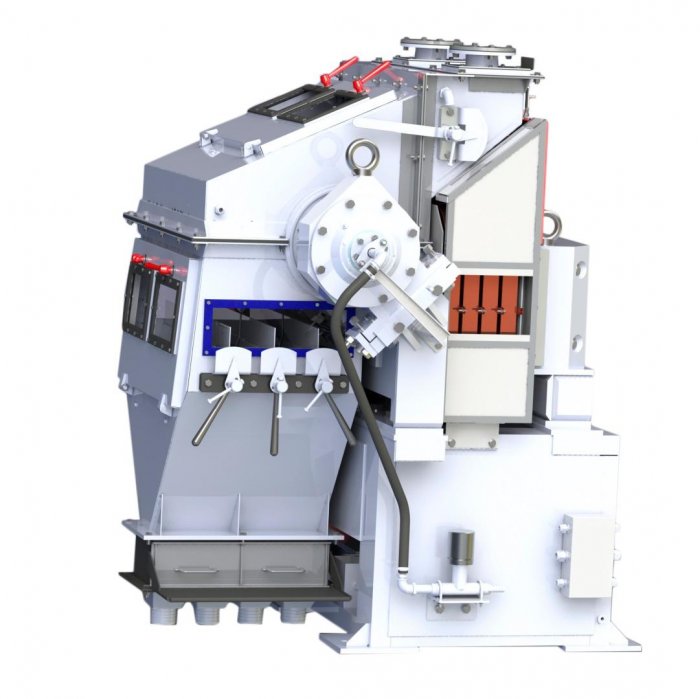

| EVS 36/50 | Efficiency, t/h up to 3 | Feed size, mm up to 6 | Magnetic induction in the working area on the roll surface, T 1.7 | Roll working part diameter, mm 360 | Roll working part length, mm 500 | Number of rolls, pcs. 1 | Rotor speed, min-1, within 50-200 | Drive power, kW 7.5 | Electromagnetic system consumed power, kW 1.7 |

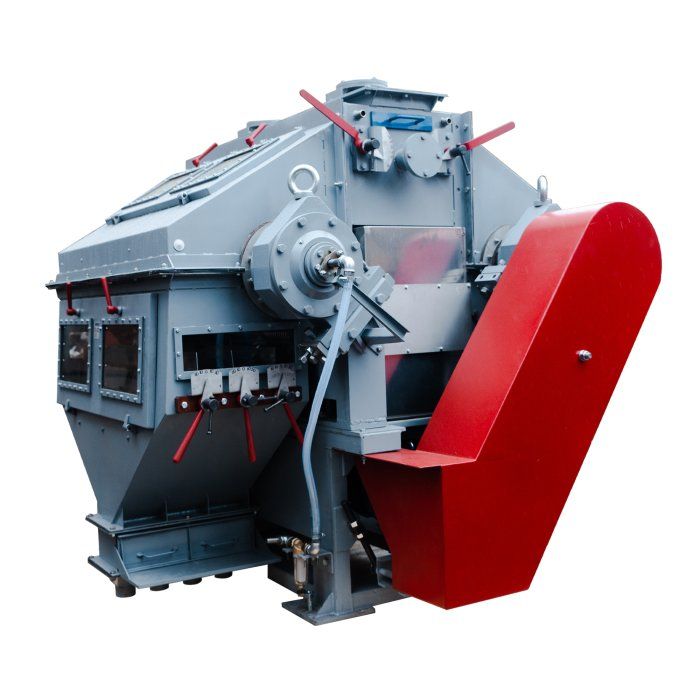

| 2EVS 36/100 | Efficiency, t/h up to 12.0 | Feed size, mm 6 | Magnetic induction in the working area on the roll surface, T 1.7 | Roll working part diameter, mm 360 | Roll working part length, mm 1000 | Number of rolls, pcs. 2 | Rotor speed, min-1, within 37 | Drive power, kW 15 | Electromagnetic system consumed power, kW 5.4 |
