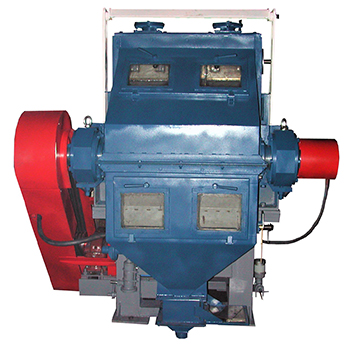

Electromagnetic roll separators with top feed (EVS-V)
| Efficiency, t/h | Magnetic induction in the working area on the roll teeth, T | Feed size, mm, max. | Roll working part diameter, mm | Roll working part length, mm | Roll speed, min-1 , | Drive power, kW | Electromagnetic system consumed power, kW, max | |
|---|---|---|---|---|---|---|---|---|
| EVS V-28/9 | Efficiency, t/h up to 0.3 | Magnetic induction in the working area on the roll teeth, T 1.5 | Feed size, mm, max. 0.5 | Roll working part diameter, mm 280 | Roll working part length, mm 90 | Roll speed, min-1 , 50-150 | Drive power, kW 1.5 | Electromagnetic system consumed power, kW, max 0.8 |
| EVS V-36/50 | Efficiency, t/h up to 1.5 | Magnetic induction in the working area on the roll teeth, T 1.7 | Feed size, mm, max. 0.5 | Roll working part diameter, mm 360 | Roll working part length, mm 500 | Roll speed, min-1 , 50-75 | Drive power, kW 7.5 | Electromagnetic system consumed power, kW, max 1.8 |
Electromagnetic roll separator is the efficient machine for dry concentration of ore and technogenic raw materials.
In mining, the electromagnetic separator is used for rough rare metal concentrates upgrading and separation, as well as for purification from dark-coloured admixtures of ceramic and abrasive raw materials. The electromagnetic separator can be also used for low-magnetic iron ore concentration.
For purchasing of the equipment you are interested in or for more detailed information, please contact us by phone +7 (812) 331-02-42.
