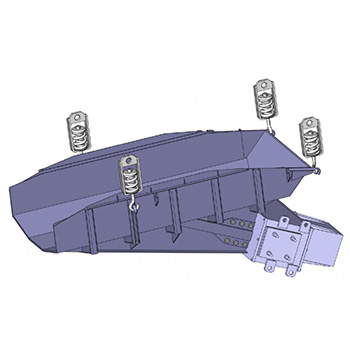

Shock absorber (heavy) feeders
| Tray length, mm | Transported material size, mm, max. | Mass, kg | Max amplitude of tray oscillations, mm | Max feeder efficiency, m3/h, at the tray slope of 4°* | Magnet winding current, А, max | Tray width, mm | |
|---|---|---|---|---|---|---|---|
| PE 7×18F | Tray length, mm 1800 | Transported material size, mm, max. 160 | Mass, kg 1,200 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 60 | Magnet winding current, А, max 12 | Tray width, mm 700 |
| PE 7×23,5F | Tray length, mm 2350 | Transported material size, mm, max. 160 | Mass, kg 1350 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 60 | Magnet winding current, А, max 12 | Tray width, mm 700 |
| PE 10×15 | Tray length, mm 1500 | Transported material size, mm, max. 250 | Mass, kg 1350 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 90 | Magnet winding current, А, max 12 | Tray width, mm 950 |
| PE 10×20 | Tray length, mm 2000 | Transported material size, mm, max. 250 | Mass, kg 1400 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 90 | Magnet winding current, А, max 12 | Tray width, mm 950 |
| PE 10х30 | Tray length, mm 3,000 | Transported material size, mm, max. 250 | Mass, kg 2,600 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 90 | Magnet winding current, А, max 16 | Tray width, mm 950 |
| PE 12×25 | Tray length, mm 2,500 | Transported material size, mm, max. 320 | Mass, kg 1,700 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 150 | Magnet winding current, А, max 15 | Tray width, mm 1,200 |
| PE 12×25-V | Tray length, mm 2,500 | Transported material size, mm, max. 320 | Mass, kg 2,600 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 150 | Magnet winding current, А, max 16 | Tray width, mm 1,200 |
| PE 12×20 | Tray length, mm 2000 | Transported material size, mm, max. 320 | Mass, kg 1600 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 150 | Magnet winding current, А, max 13 | Tray width, mm 1200 |
| PE 14×25.5 | Tray length, mm 2,550 | Transported material size, mm, max. 380 | Mass, kg 2,600 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 250 | Magnet winding current, А, max 16 | Tray width, mm 1,400 |
| PE 15×25 | Tray length, mm 2,500 | Transported material size, mm, max. 400 | Mass, kg 2,600 | Max amplitude of tray oscillations, mm 0.6 | Max feeder efficiency, m3/h, at the tray slope of 4°* 300 | Magnet winding current, А, max 16 | Tray width, mm 1,500 |
*Measured in dry sand (sand density of 1.52 kg/dm3). When the feeder trays slope increases by8, and the qualitative outflow of material from the hopper is ensured, the efficiency increases by 25% of the nominal value.
