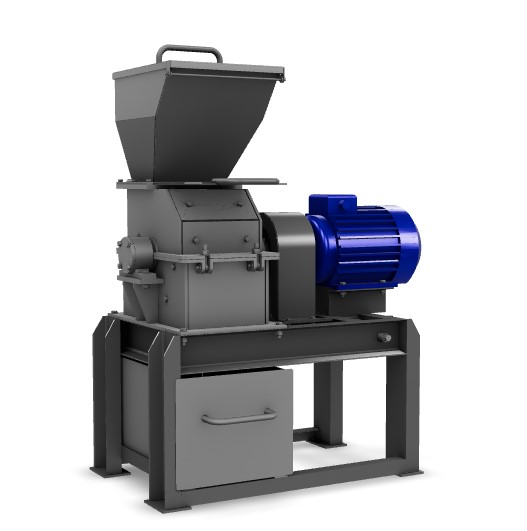

Hammer crusher MD ЗХ2S

On order

Price on request

Description

Purpose:

The crusher is mainly designed for grinding the brittle and low-abrasive materials for laboratory research in periodical mode.

Delivery set:

МD 3х2S (МD 5х2S) hammer crusher, finished product tank, operation manual, data sheet.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	МD 3х2S*
Feed size, mm, up to	50
Rotor size, mm
Diameter	300
Length	200
Discharge grate cell size, mm*	3 - 20
Rotor speed, rpm	1,000 - 3,000
Motor power, kW	4.0
*Overall dimensions, mm*
Length	926
Width	690
Height	1204
Mass, kg	190

*The crusher is additionally equipped with frame, discharge through, feed hopper with cap and gate valve.

STOCK: Time of manufacture to order - 2.5 months.

Questionnaire

For purchasing of the equipment you are interested in, please use the application form on the web-site or order a callback, and our specialists will prepare all necessary information and consult you on all kinds of equipment.

For more full-on selection of the equipment and consultation of the technical specialist, please fill in the questionnaire and send it using this form.

Questionnaire_hammer crushers

120.1 Кб

Length, mm	650
Height, mm	1200
Width, mm	580
Mass, kg	75
Опросный лист	Download
