Vibrating cone crusher KID-100

On order

Price on request

Description

Purpose:

For grinding of brittle medium materials of various strength in continuous mode.

Delivery set:

Vibrating cone crusher assy, socket wrench, short pin, upper carrier arm plug.

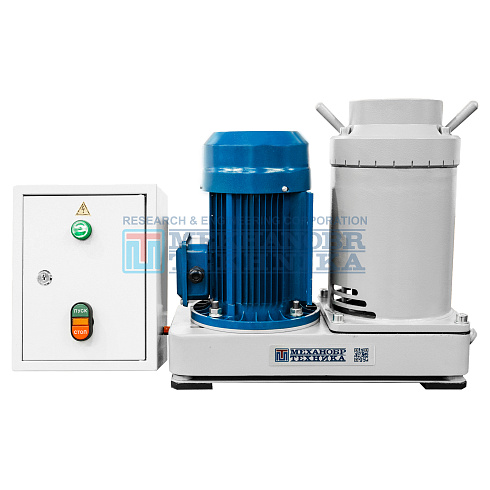

Auxiliary equipment: operating console, receiving tank.
Fast wearing parts: jaw plate.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	KID-100
Crushing cone base diameter, mm	100
Feed size, mm, up to	10
Efficiency (depending on the operating aperture size and processed material properties), max, kg/h	30
Crushed product size, mm	0.3
Drive power, kW	1.5
*Overall dimensions, mm*
Length	479
Width	203
Height	411
Mass, kg	62

Questionnaire

For purchasing of the equipment you are interested in, please use the application form on the web-site or order a callback, and our specialists will prepare all necessary information and consult you on all kinds of equipment.

For more full-on selection of the equipment and consultation of the technical specialist, please fill in the questionnaire and send it using this form.

Questionnaire_cone crushers

120.6 Кб

Length, mm	1,420
Height, mm	1160
Width, mm	825
Mass, kg	1350
