Bowl vibrating pulverizer IVT-3

On order

Price on request

Description
Specifications

Description

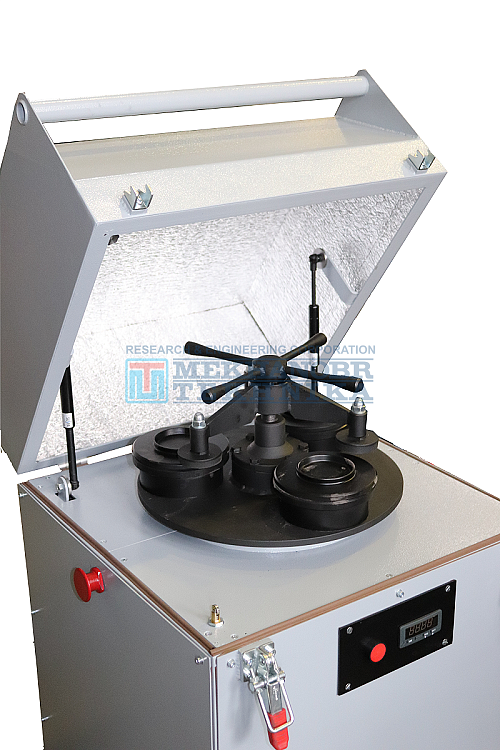

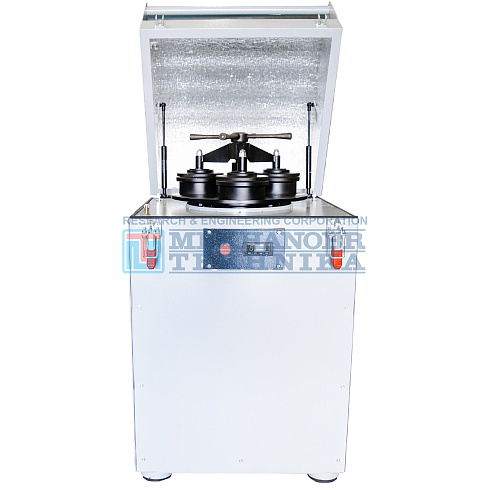

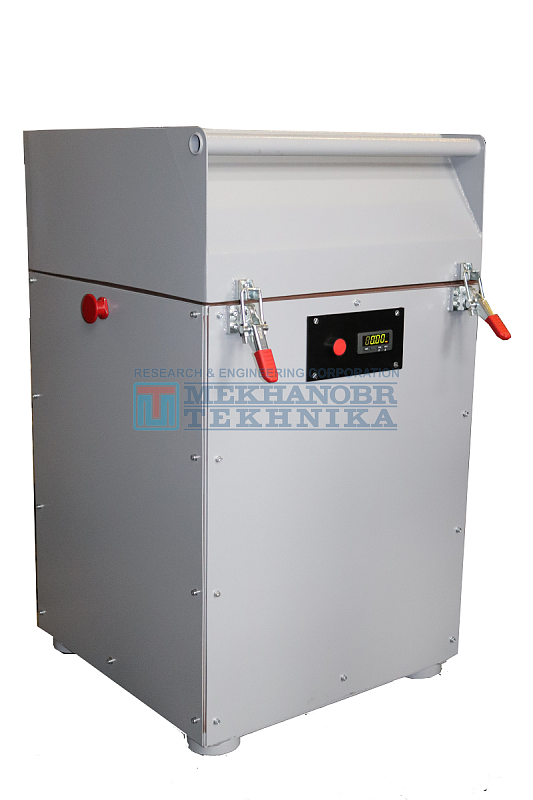

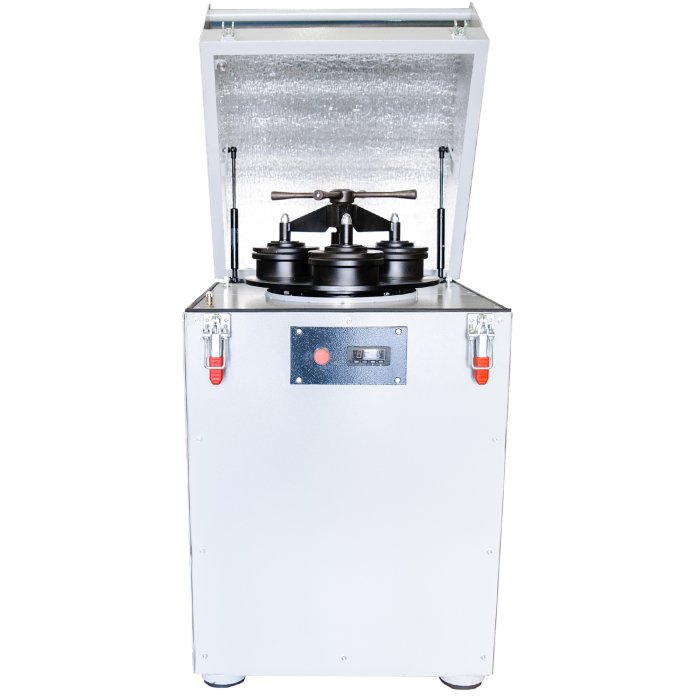

IVT-3 bowl vibrating pulverizer

Purpose:

Designed for fine grinding of samples of brittle materials of various hardnesses and strengths in periodical mode.

Characteristics:

A reliable and easy-to-use pulverizer of samples for later chemical analysis. The IVT-3 pulverizer has a dust-proof and noise-protective frame. It has a time relay installed.

Delivery set:

Bowl vibrating pulverizer assy.
Fast wearing parts: grinding equipment*
* the grinding equipment made of alloy steel can be supplied.

Recommended additional set of spare parts

a set of grinding equipment (structural steel)
a set of grinding equipment (alloy steel)
a set of grinding equipment (tool alloy steel or tool die steel)
a set of shock absorbers

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	IVT-3
Number of bowls, pcs.	3
Feed size, mm, max.	4
Weighed sample in one cup, g, up to	50
Finished product size (depending on time of grinding), mm	0.05
Oscillation amplitude of the operating element, mm, max	6
Working body oscillation frequency, Hz, no less than	23.4
Motor power, kW	1.5
*Overall dimensions, mm, up to*
Length	683
Width	624
Height	970
Mass, kg	283

Stock: The pulverizers are available from stock.

Length, mm	1230
Height, mm	1180
Width, mm	570
Mass, kg	145
Опросный лист	Download
