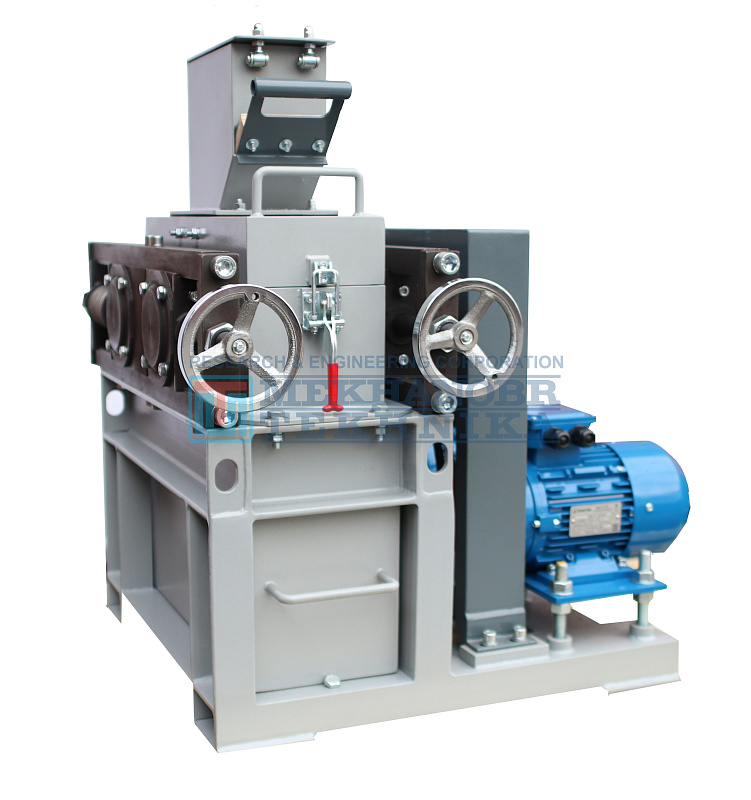

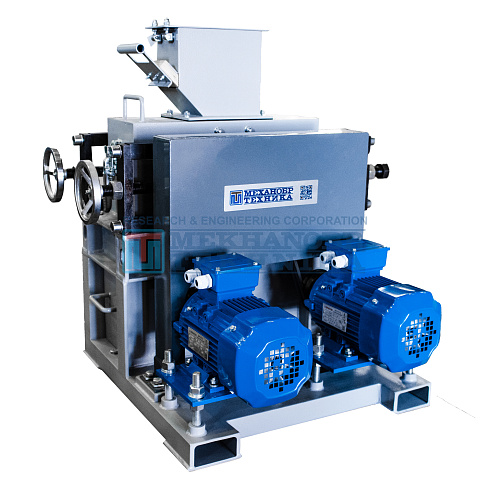

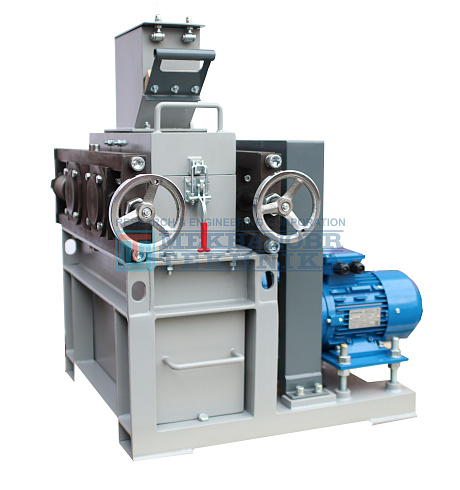

Roll crusher DG 200х125 M

Price on request

Description

Purpose:

Crusher is designed for crushing the rocks and ores with compressive resistance of up to 250 MPa during their preparation for analytical research.

Delivery set:

Roll crusher assy (with starting equipment).

Auxiliary equipment: Receiving tank and operating console.

Fast wearing parts: rolls.

Time of manufacture: 4 months.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specifications*	DG 200х125 М
Roll sizes, mm
diameter	200
length	125
Feed size, max, mm	10-18
Discharge opening, mm	0.5-8
Capacity, t/h	up to 0.8*
Rolls RPM, rev/min	580
Electric motor power, kW	2х1.1
*Overall dimensions, max, mm:*
length	720
width	740
height	790
Mass, max, kg	253

*Productivity depends on the size of the exit slit (grate cell) and the properties of the processed material

Questionnaire

For purchasing of the equipment you are interested in, please use the application form on the web-site or order a callback, and our specialists will prepare all necessary information and consult you on all kinds of equipment.

For more full-on selection of the equipment and consultation of the technical specialist, please fill in the questionnaire and send it using this form.

Questionnaire_crushers

120.9 Кб

Length, mm	1520
Height, mm	920
Width, mm	1200
Mass, kg	1200
