Jaw crusher JC 60х100M (JC 6M)

New product

On order

Price on request

Description

Purpose:

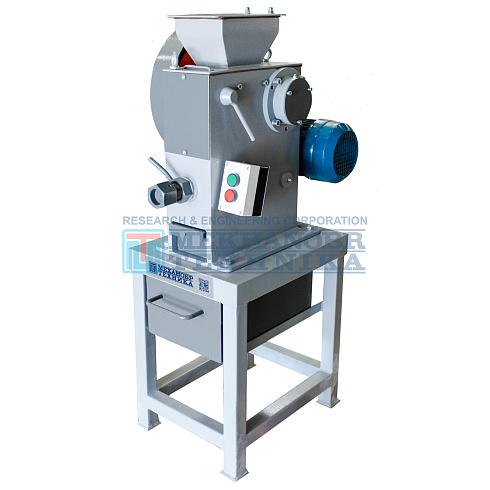

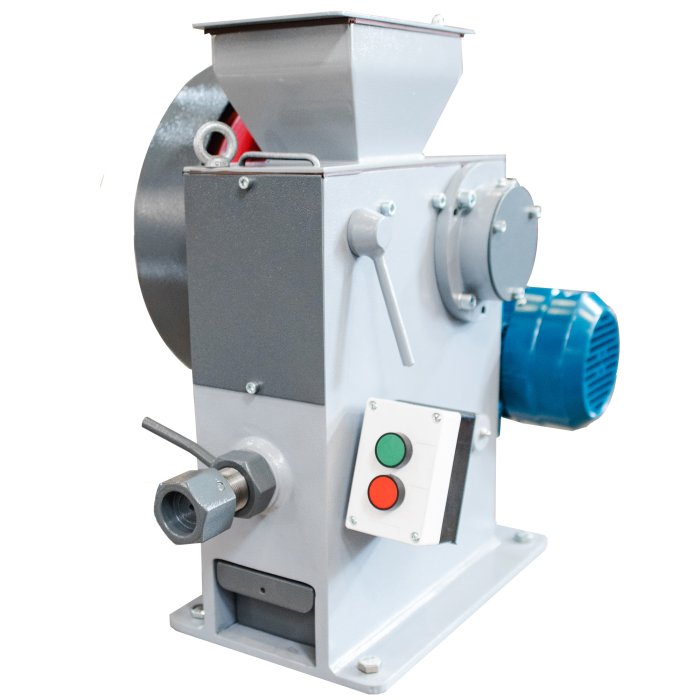

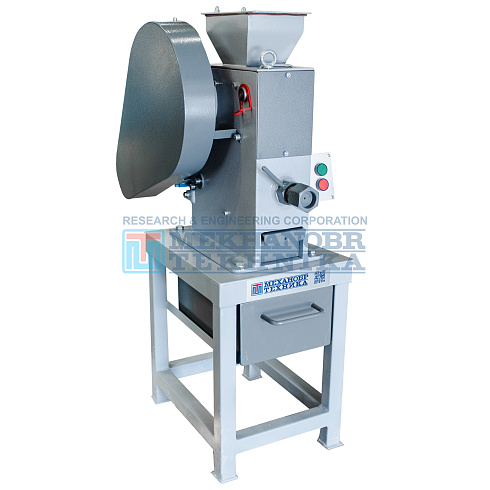

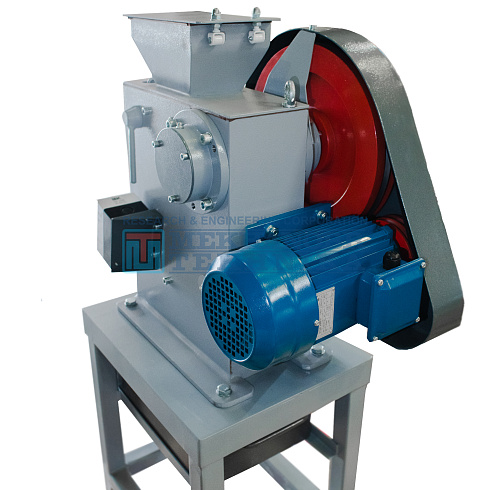

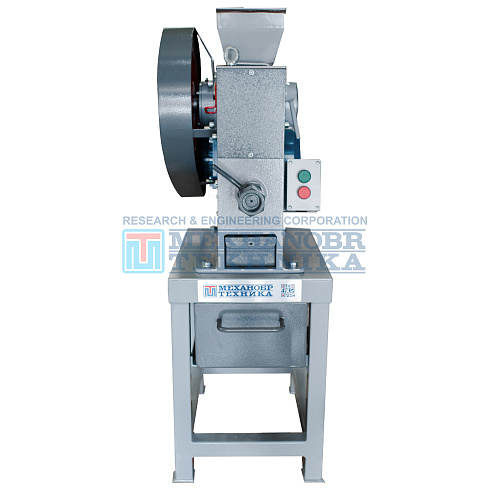

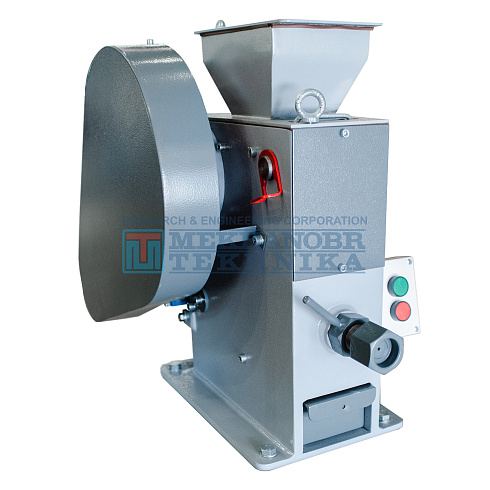

The laboratory jaw crusher JC 60x100 M (JC 6M) is designed for crushing brittle materials of various strength and hardness up to 200 Mpa., except radioactive and explosive materials.

Characteristics:

It is characterized by simple design, reliable operation, and high serviceability. Due to these, the jaw crushers have been among the most common kinds of crushing equipment for many years.

We have upgraded the conventional design of the JC 60х100 jaw crusher to make the equipment operation even more comfortable:

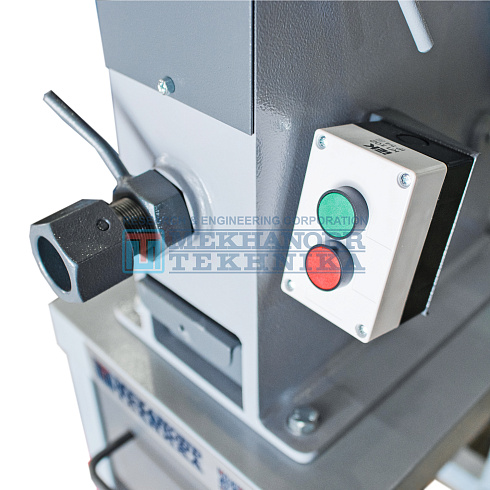

the housing has become more rigid, as a result, all main indicators have been improved, the control system location has been changed, and it has become more accessible and easy-to-operate, the cleaning of the crushing cavity has been simplified.

the control system location has been changed, and it has become more accessible and easy-to-operate

the cleaning of the crushing cavity has been simplified.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	JC 60Х100 М (JC 6М)
Feed opening size (width x length)	60х100
Feed size, mm, max.	50
Discharge aperture size, mm	1÷15
Product size, d50, mm, up to, with minimum aperture	2
Capacity for the crushing of medium sized granite pieces, kg/h, no less than, with discharge opening width of 10 mm	150
Motor, kW, rpm	1,1
Overall dimensions, mm
Length	675
Width	330
Height	570
Mass, kg	141

Questionnaire

For purchasing of the equipment you are interested in, please use the application form on the web-site or order a callback, and our specialists will prepare all necessary information and consult you on all kinds of equipment.

Questionnaire_vibrating jaw crushers (VJC)

121.1 Кб
