For crushing the brittle and medium hard materials.

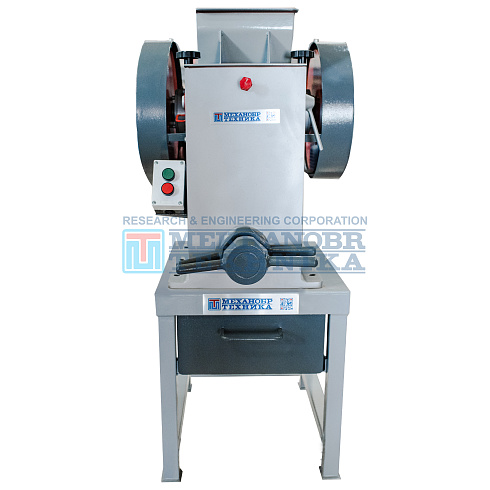

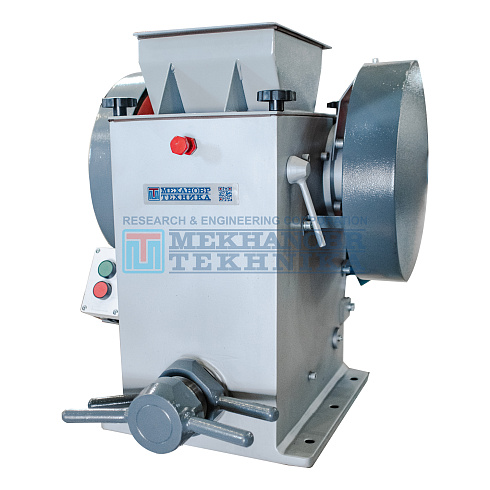

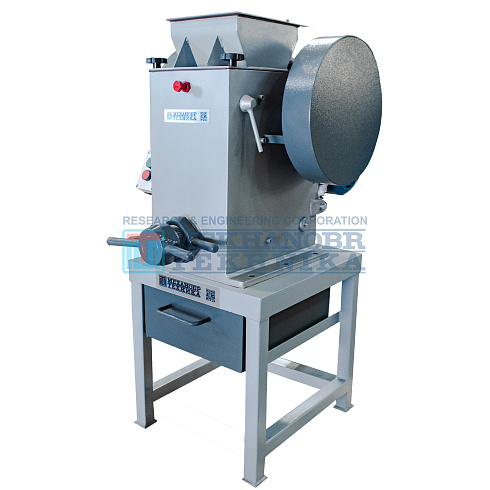

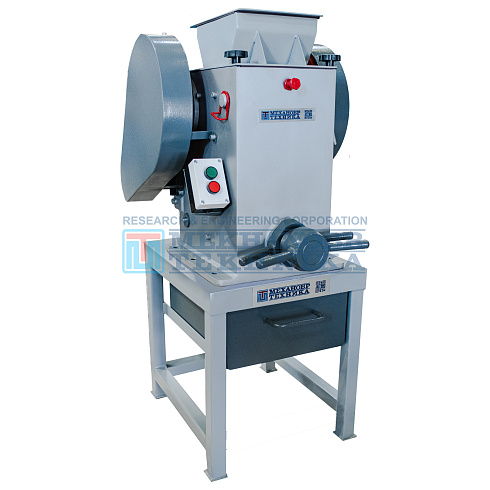

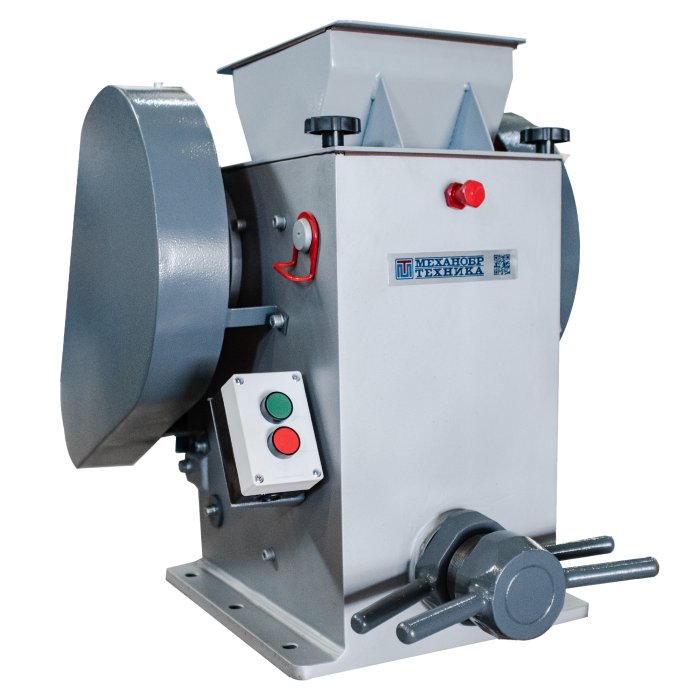

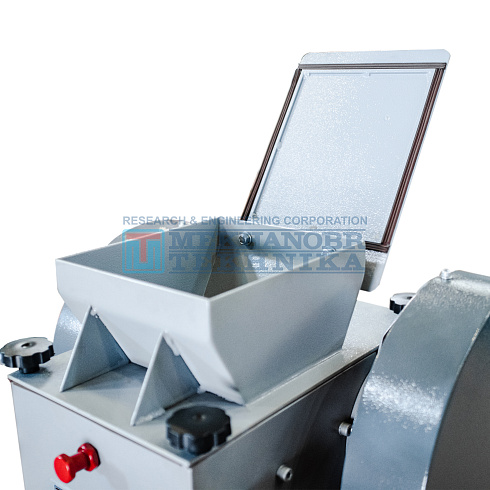

Jaw crusher assy, support (frame).
Auxiliary equipment: operating console.

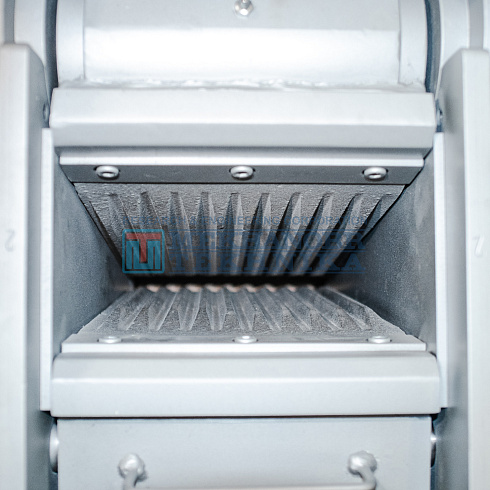

Fast wearing parts: jaw plates, cheek plates.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.
| Specification | JC 100Х200 М (JC 10М) |
| Feed opening size, mm (width x length) | 100 x 200 |
| Feed size, mm, max. | 90 |

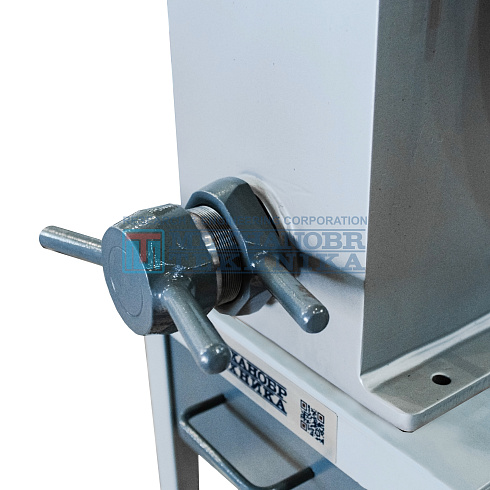

| Discharge aperture size, mm | 2-15 |
| Product size with minimum opening, d50, mm | 5 |
| Efficiency (depending on the processed material properties and size), kg/h, max | 400 |

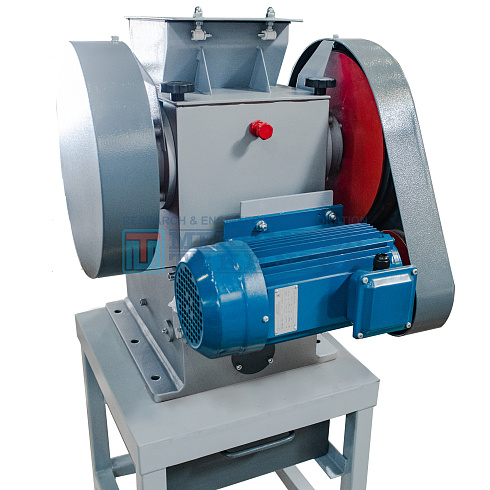

| Motor power, kW | 2.2 |
| Overall dimensions, mm | |
| Length | 800 |
| Width | 520 |
| Height | 630 |
| Mass, kg | 293 |
