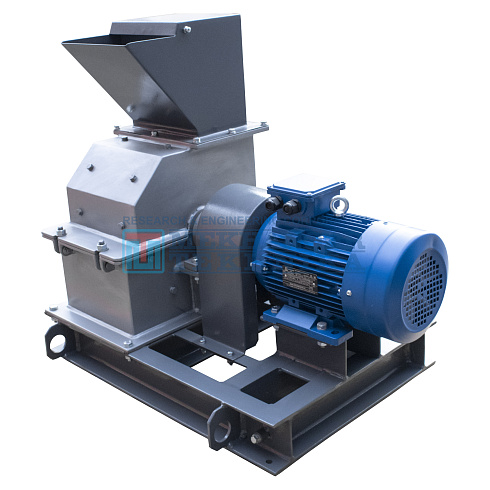

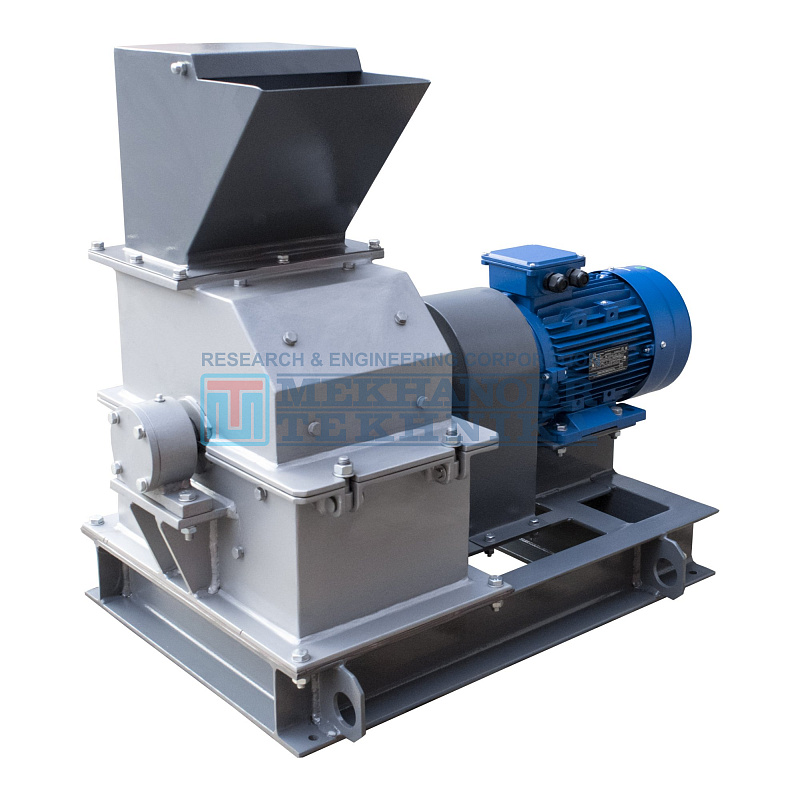

Hammer crusher MD 3Х2 / MDV 3x2

Price on request

Description

Purpose:

The crusher is mainly designed for grinding the brittle and low-abrasive materials, as well as various fibrous materials, industrial and domestic waste.

MD - without fan

MDV - with fan

Delivery set:

Crusher assy.
Auxiliary equipment: operating console, fan, cyclone.
Fast wearing parts: hammers, discharge grate.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	МD 3х2 / MDV 3x2*
Rotor size, mm
Diameter	300
Length	200
Feed size, mm, up to	50
Discharge grate cell size, mm*	3 - 20
Rotor speed, rpm	3,000
Motor power, kW	4.0
*Overall dimensions, mm*
Length	844
Width	580
Height	712
Mass, kg	160 / 180

* V - with fan

STOCK: Time of manufacture to order - 2.5 months.

Questionnaire

For purchasing of the equipment you are interested in, please use the application form on the web-site or order a callback, and our specialists will prepare all necessary information and consult you on all kinds of equipment.

For more full-on selection of the equipment and consultation of the technical specialist, please fill in the questionnaire and send it using this form.

Questionnaire_hammer crushers

120.1 Кб

Length, mm	650
Height, mm	1200
Width, mm	580
Mass, kg	75
Опросный лист	Download
