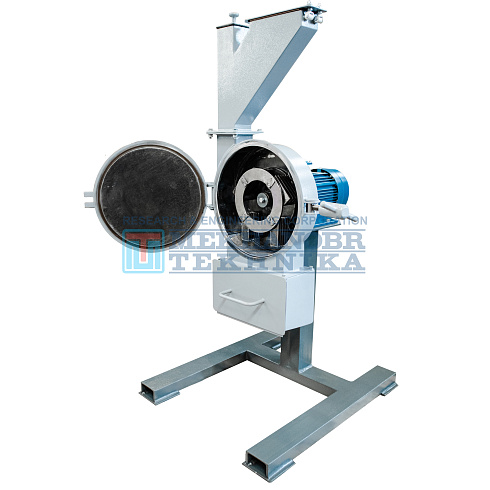

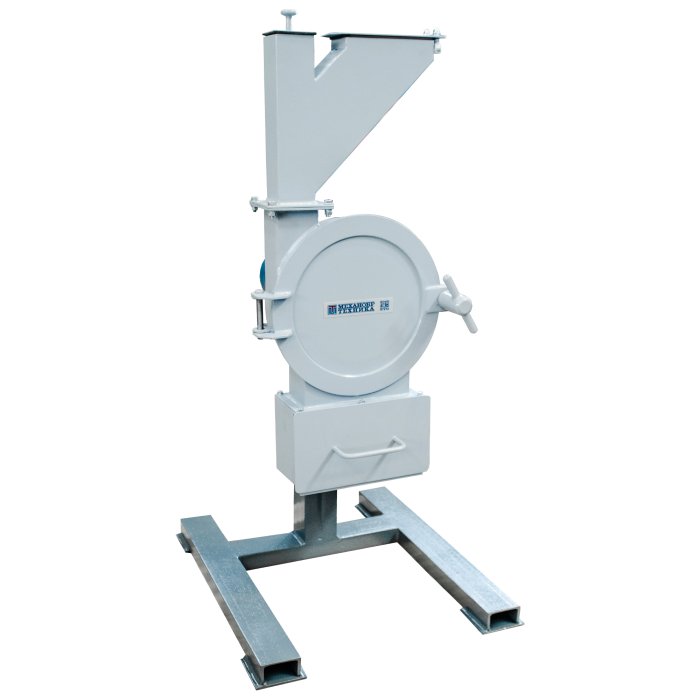

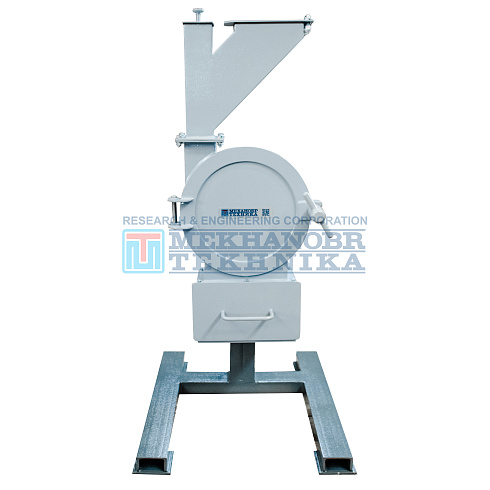

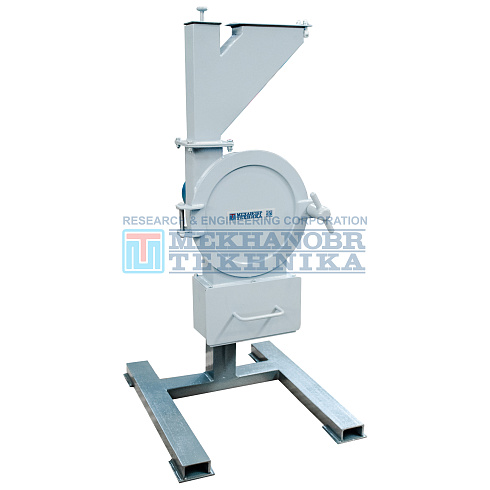

The crusher is mainly designed for grinding the brittle and low-abrasive materials, as well as various fibrous materials, industrial and domestic waste.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.
| Parameter name | MD 3x0,65 |
| Feed size, mm, up to | 30* |
| Rotor size, mm diameter; length | 300;65 |
| Grid bar cell size, mm | 2.5÷10 |
| Rotor speed; rpm | 3,000 |
| Rated power of drive, kW | 3.0 |
| Power supply voltage, V | 380 |
| Overall dimensions, mm | |
| Length | 650 |
| Width | 580 |
| Height | 1200 |
| Mass, kg | 75 |
No specific foundation requirements.
The dynamic loads from the crusher to the floor are max 10% of the crusher mass.
