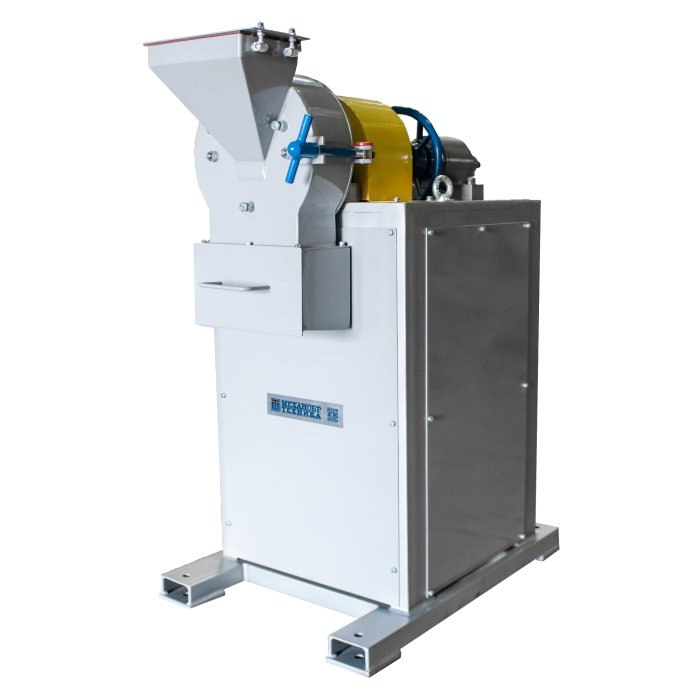

Disk pulverizer ID 250MS

On order

Price on request

Description

Purpose:

The pulverizer is designed for dry fine grinding of brittle materials of various hardness and strength in continuous or periodical mode. The pulverizer has the damage prevention system in case of uncrushable object ingress. The lower part of the housing has the space for installation of the box where the crushing product collector is installed in.

M and MS - equipped with a block of protection against ingress of non-shatterable material, and also have a V-belt feed.

MS-has a more convenient access to the crushing chamber for cleaning

Delivery set:

ID 250MS, operation manual, box.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	ID250MS
Opening size range, mm	0,2 - 5
Feed size, mm	12
Product size, mm	d50 < 0.2
Efficiency, kg/h	50-300
Installed power, kW	5.5
*Overall dimensions, mm, up to*
Length	1100
Width	610
Height	1220
Mass, kg	315

Questionnaire

For purchasing of the equipment you are interested in, please use the application form on the web-site or order a callback, and our specialists will prepare all necessary information and consult you on all kinds of equipment.

For more full-on selection of the equipment and consultation of the technical specialist, please fill in the questionnaire and send it using this form.

Questionnaire_pulverizer

120.4 Кб

Back to list
