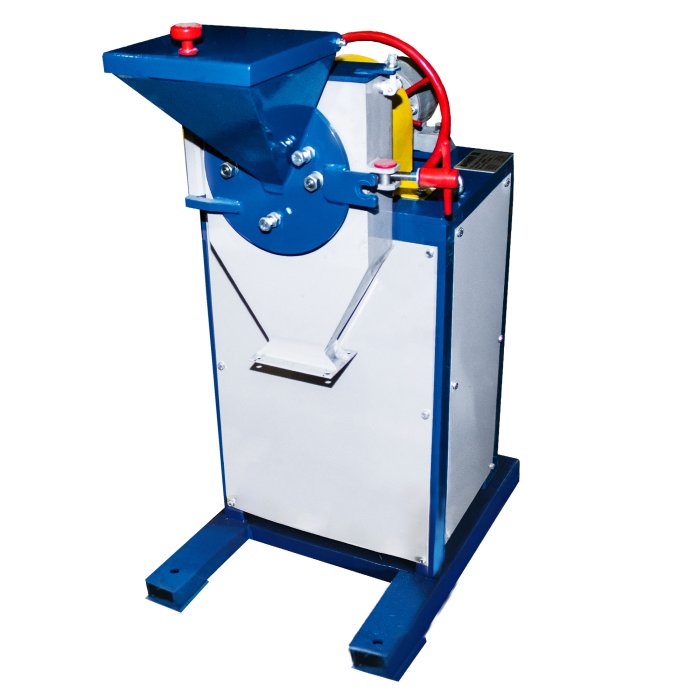

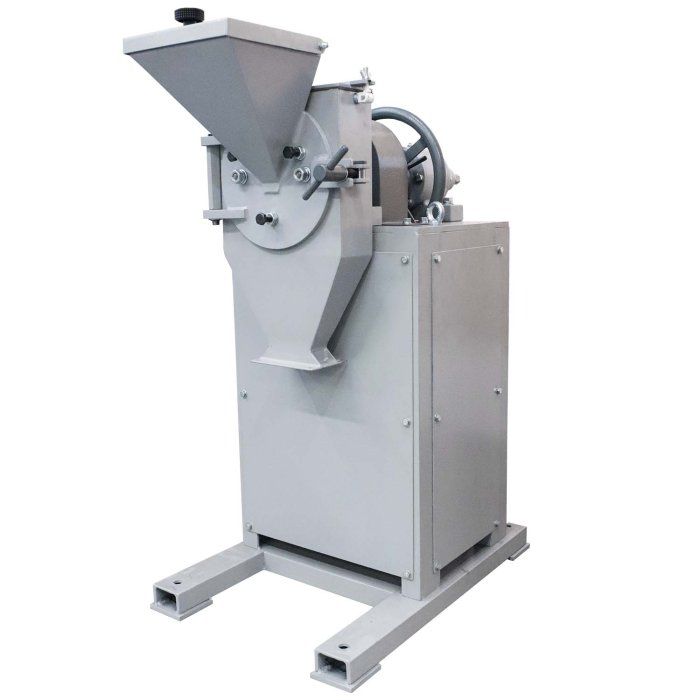

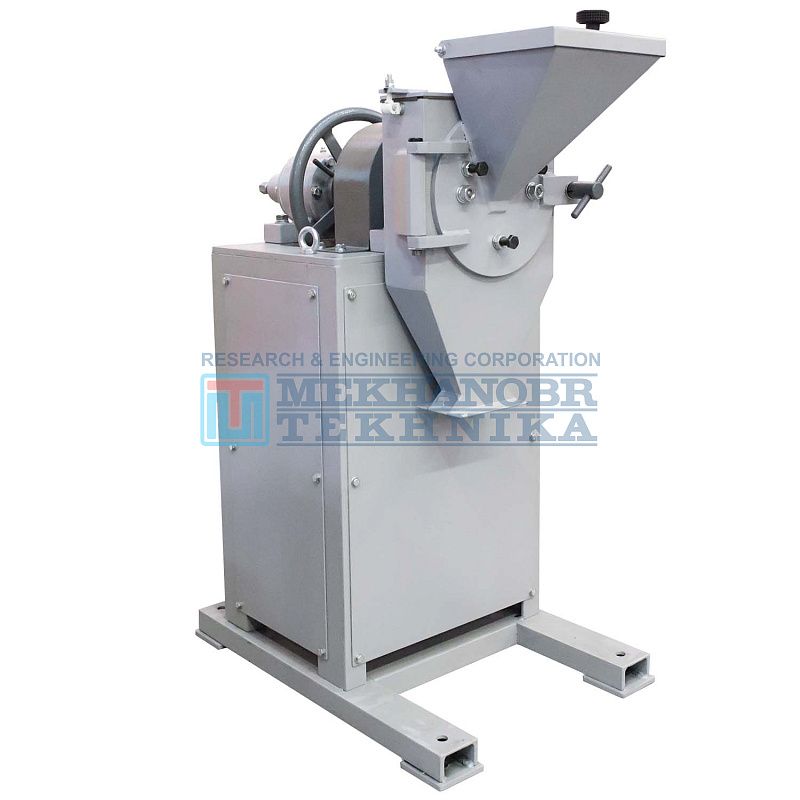

Disk pulverizer ID-175M

On order

Price on request

Description

ID-175M disc pulverizer

Purpose:

For continuous powdering of larger components of ferrous and other solid materials with uncrushable inclusions.

M and MS - equipped with a block of protection against ingress of non-shatterable material, and also have a V-belt feed.

Delivery set:

Disc pulverizer assy.
Auxiliary equipment: operating console.

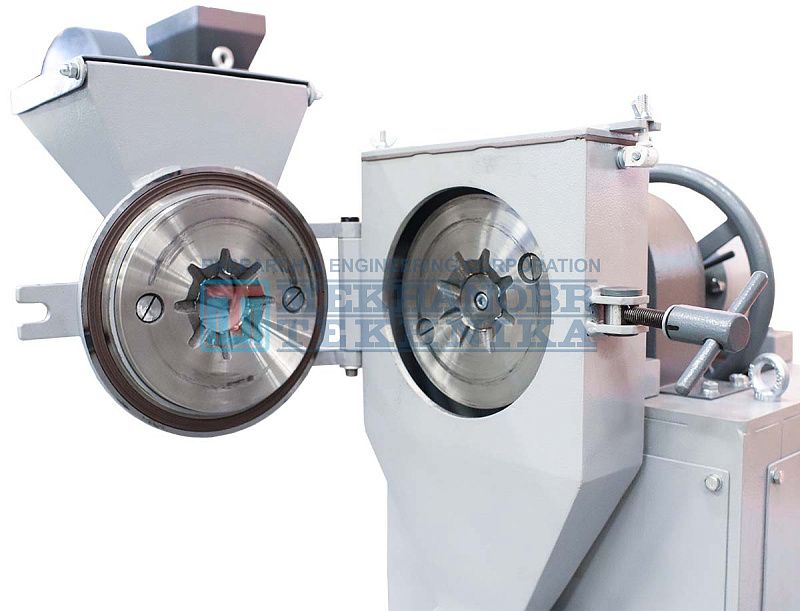

Fast wearing parts: discs.

For purchasing of the equipment you are interested in or for more detailed information, please contact us by phone +7 (812) 331-02-42.

Specifications

*Specification*	ID-175М
Feed size, mm, up to	6
Product size, mm	d50 < 0.1
Opening size range, mm	0.2 - 5
Capacity (depending on the opening size and properties of processed material), kg/h	10-100
Motor power, kW	1.5
*Overall dimensions, mm, up to*
Length	800
Width	430
Height	930
Mass, kg	120

Stock: The pulverizers are available from stock.
