Disk pulverizer ID-175

On order

Price on request

Description

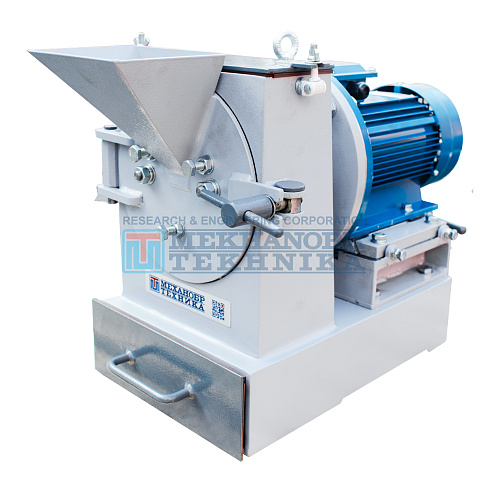

ID-175 disc pulverizer

Purpose:

For dry grinding of brittle medium hard materials in continuous mode. It is mainly used for ferrous and nonferrous raw material sample preparation for chemical and mineral analysis of material composition.

Delivery set:

Disc pulverizer assy (with receiving tank).
Auxiliary equipment: operating console.
Fast wearing parts: discs.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	ID-175
Feed size, mm, up to	6
Product size, mm	d50 < 0.1
Opening size range, mm	0.2 - 5
Efficiency (depending on the operating aperture size and processed material properties), kg/h	10-100
Motor power, kW	1.5
*Overall dimensions, mm, up to*
Length	570
Width	270
Height	445
Mass, kg	80

STOCK: Time of manufacture to order - 2.5 months.
