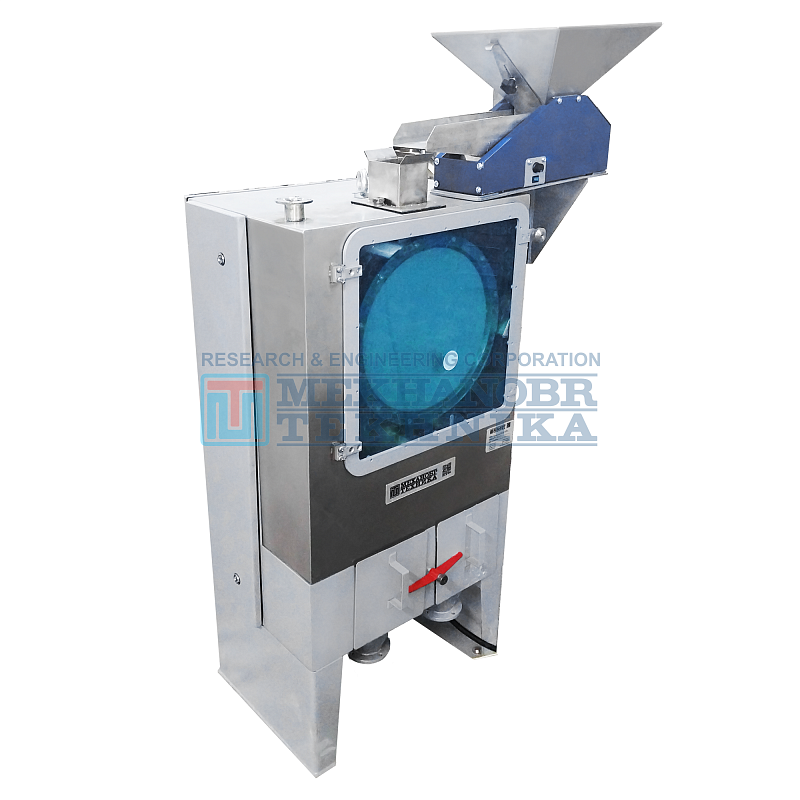

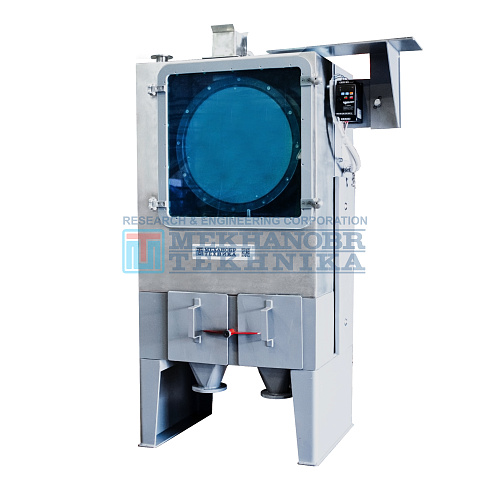

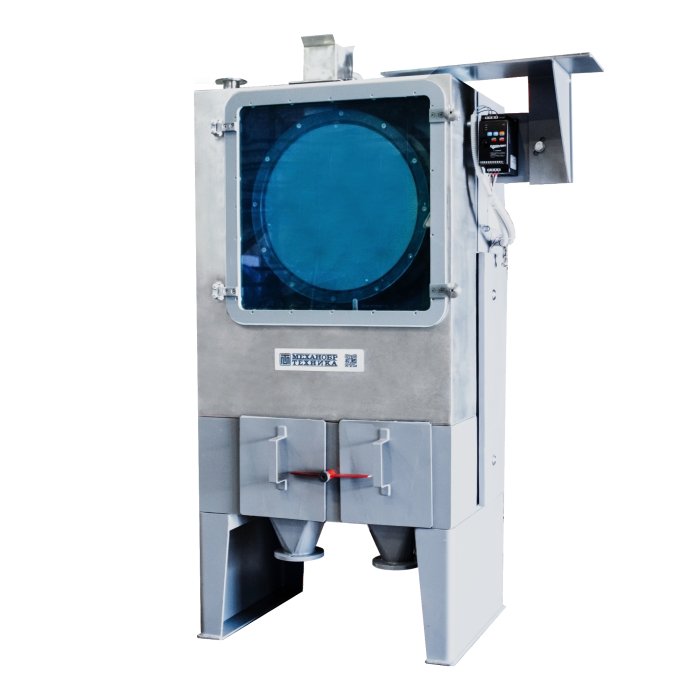

PBST 40/10 dry drum separator
Designed for dry magnetic concentration of strongly magnetic ores and iron removal from various loose materials with the size of up to 15 mm.
The materials are separated into two products: magnetic and nonmagnetic.
Scope of application
- materials with the size of -6+0.1 mm
- materials purification from strongly magnetic additives (quartz sand, glass raw materials, white fused alumina, firebricks, tungsten-cobalt powders (for powder metallurgy), tyre and nickel-cadmium derived products, and so on);
- protection of EVS and ERS-V series separators from strongly magnetic additives;
- fine magnetite ore concentration with high-quality iron concentrate production;
- cobalt-containing slag concentration.
The separators are produced in various versions:
- with barium ferrite magnets;
- with NdFeB magnets providing for increased magnetic induction on the drum surface (at least 0.3 Т);
- with constant drum speed;
- with controlled drum speed (frequency converter);
- with vibrating feeder (for non-free-flowing materials);
- without vibrating feeder.
Delivery set:
- PBSTs-40/10 separator - 1 pc.
- Vibrating feeder 294PT * - 1 pc.
- Inlet chute 291SE-19.000** - 2 pcs.
- Operation manual 291SE-00.000RE - 1 copy
- Data sheet 291SE-00.000PS - 1 copy
* -Necessity of manufacture is discussed when ordering.
** -Supplied only with separators 291SE-00.000;-01.
Foundation requirements: No specific foundation requirements.
Dynamic loads: Dynamic loads are not rated.
The separator complies with GOST 10512-93 “Magnetic and Electromagnetic Separators. General Specifications”.
