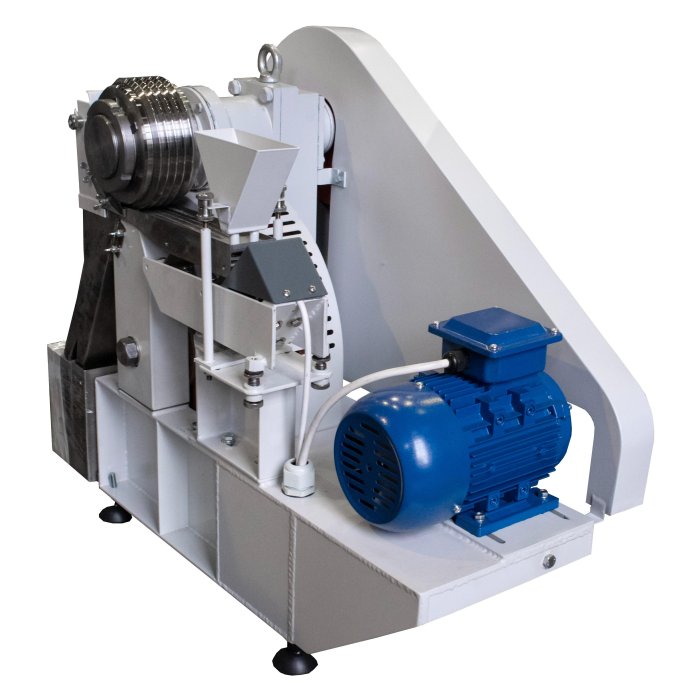

EVS-15/5 electromagnetic roll separator
Designed for dry separation of weakly magnetic ores and materials into magnetic and nonmagnetic components (EVS - dry induced separators).
The separators are constructed to allow for their usage as analyzers under laboratory conditions, in metallurgic plants and in other branches of industry.
Characteristics:
Adjustments can be made to the composition of the separated products by selecting the feed speed of the vibratory feeder, magnetic field intensity and position of the feed launder in the work zone. Feed of the material into the work zone of the separator can be done in a "calm" transportation mode as well as in "fluidized bed" mode, which helps to increase the efficiency of the separation process.
Operating principle:
The material to be separated is poured into the hopper and then supplied to the working area along the vibrating feeder tray in the “boiling” layer mode (the boiling layer is formed by the material properties and vibrating feeder amplitude set by the relevant potentiometer on the operating console). The magnetic particles are attracted here to the rotating roll teeth surface and flown out to the area with the weakened magnetic field where they are detached from the roll teeth and flow to the inlet chute compartment “a”. The nonmagnetic particles fall from the tray to the compartment “b”. The separated product content can be regulated by changing the magnetic field intensity in the working area, rate of material fed by vibrating feeder, tray position in the working area and roll speed.
Delivery set:
- Separator assy.
- operating console.
