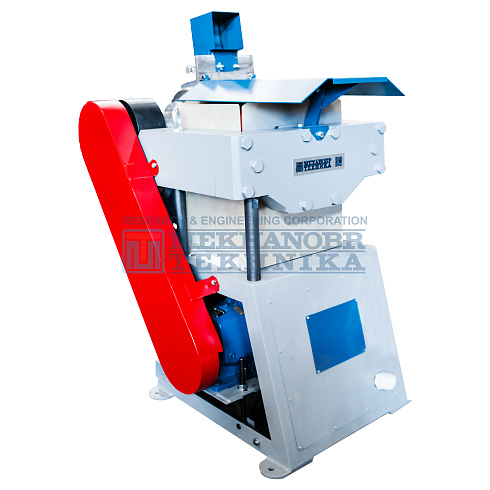

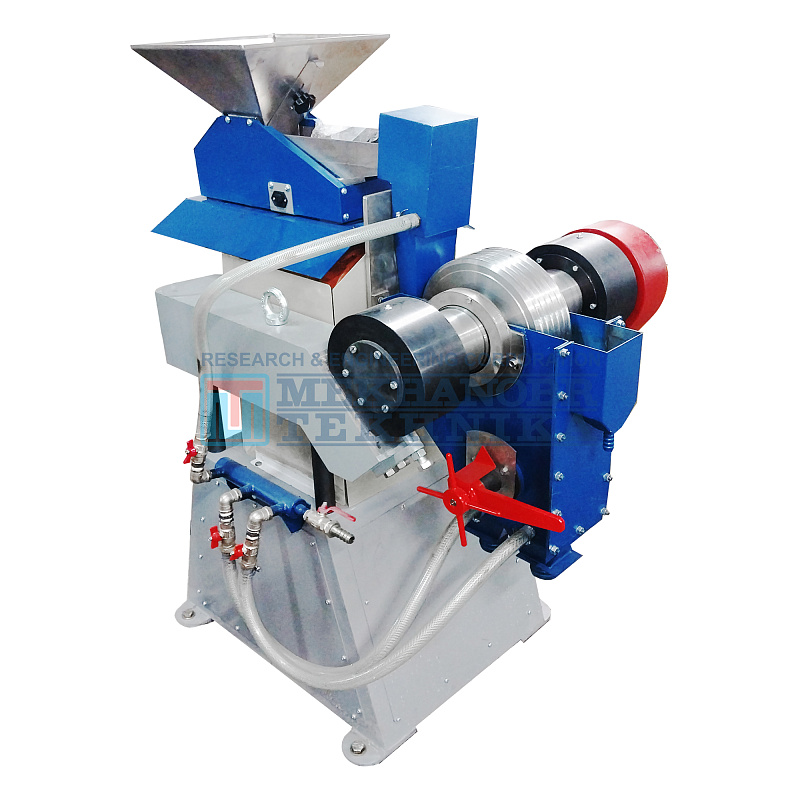

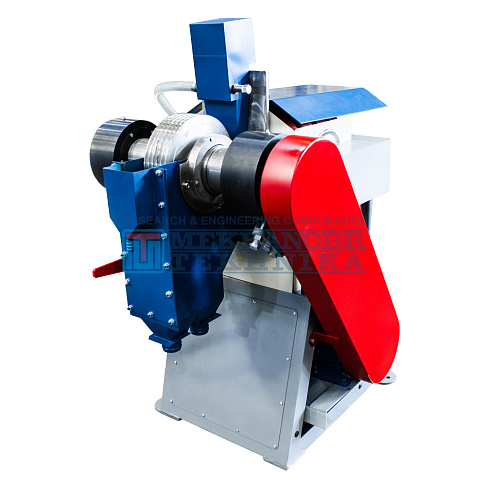

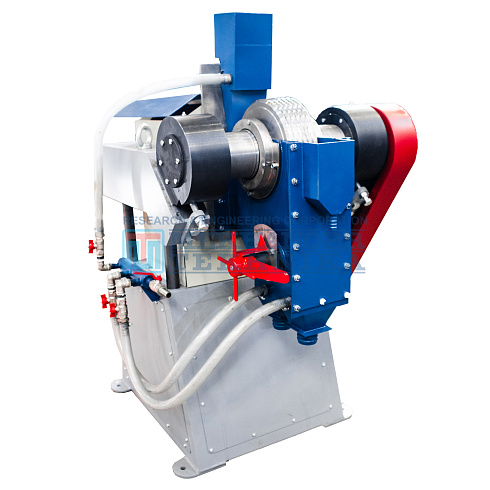

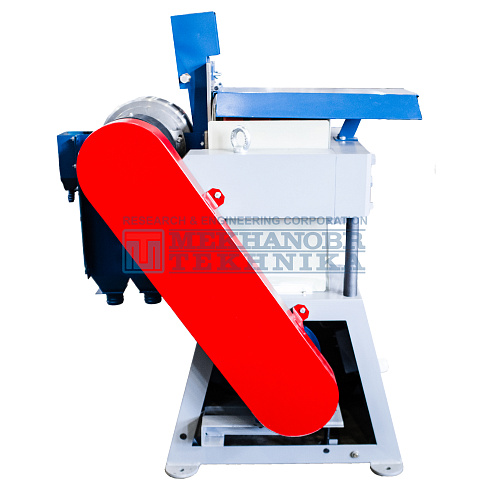

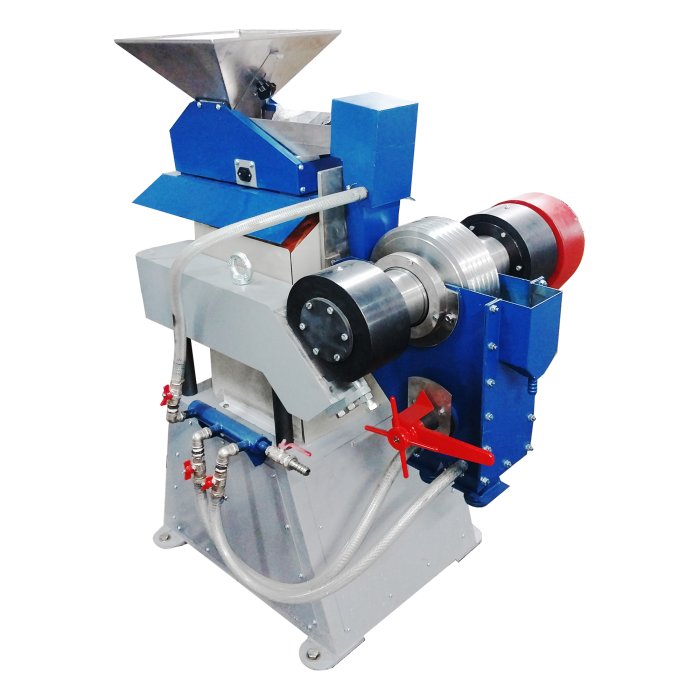

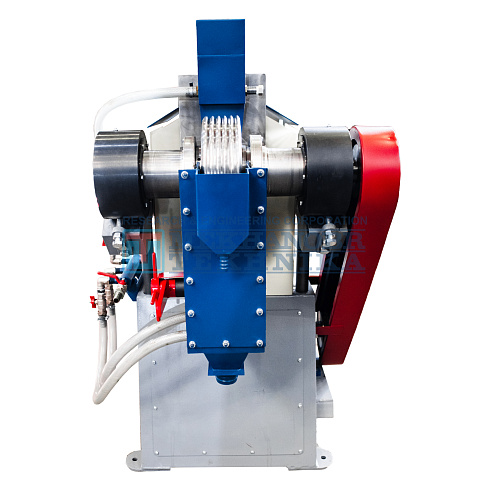

EBM-28/9 electromagnetic roll separator
Designed for the wet separation of weakly magnetic ores and materials into magnetic and nonmagnetic components (wet separators).
Characteristics:
The separator is designed for laboratory and semi-industrial research on the wet upgrading of rough rare metal concentrates, as well as on the beneficiation of oxidated metal ores and other types of weakly magnetic ores and materials. The separator may be used in moderate and cold climatic regions in enclosed spaces. Climatic version NF and location category 4 in accordance with GOST 15150-69.
Adjustments can be made to the composition of the separated products in the compartments by selecting the magnetic field intensity in the work zone, roller rotation frequency, and also by turning the tank partition (gate valve) that forms the compartments.
Delivery set:
-
EVM-28/9 separator
-
operating console
-
vibrating feeder 294PT.00.000
-
operation manual
-
data sheet.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.
