      Rotary ARC sample splitter AVD

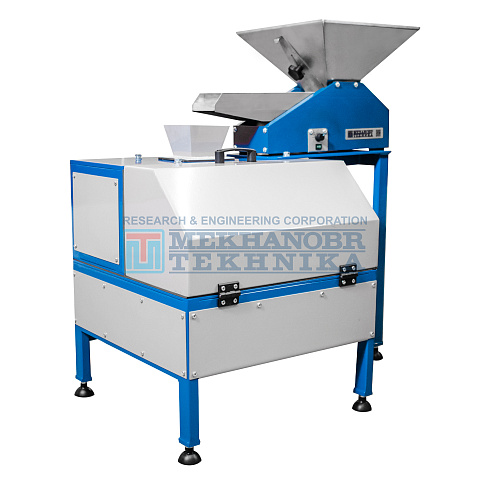

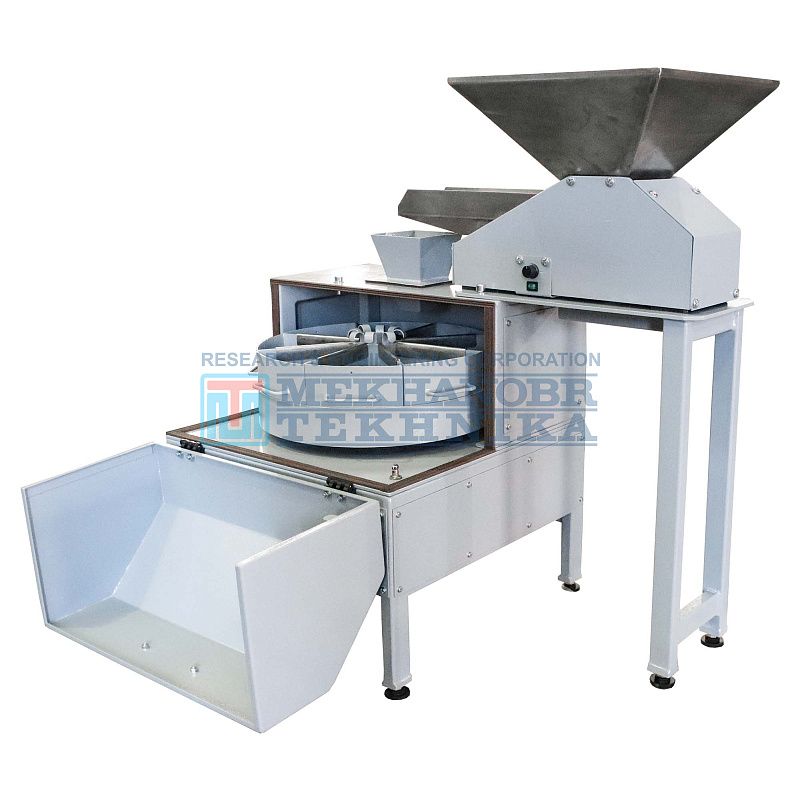

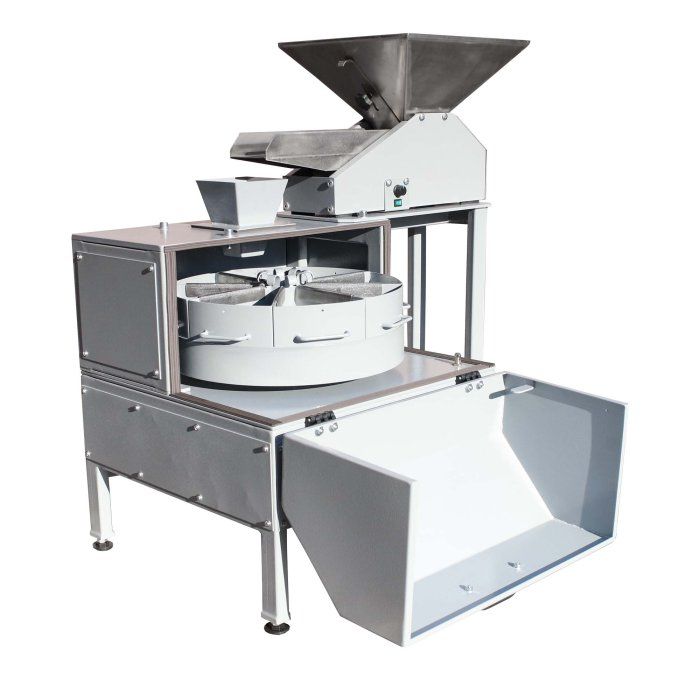

      • Rotary ARC sample splitter AVD рис.0
      • Rotary ARC sample splitter AVD рис.1
      • AVD
      • AVD рис.0
      On order
      Price on request

      Request a price

      • Description
      • Specifications
      Description

      Rotary sample splitter AVD

      Purpose:

      The rotatory laboratory splitter is designed for splitting the geological samples of rocks and ores during their preparation for analytical research.

      Delivery set:

      Delivery set: DPR-10, PE 1, remote control.

      For purchasing of the equipment you are interested in or for more detailed information, please contact us by phone +7 (812) 331-02-42.

      Specifications

      Specification AVD
      Feed size, mm, max. 20
      Total volume of receptacles, dm3 10
      Splitting ratio 1/2...1/8
      Electric motor power, kW 0.25
      Overall dimensions, mm
      Length 550
      Width 900
      Height 1020
      Mass, kg 150
