Purpose:
The riffle is designed for loose sample splitting into two components equal by mass and by content.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-43.
Назад

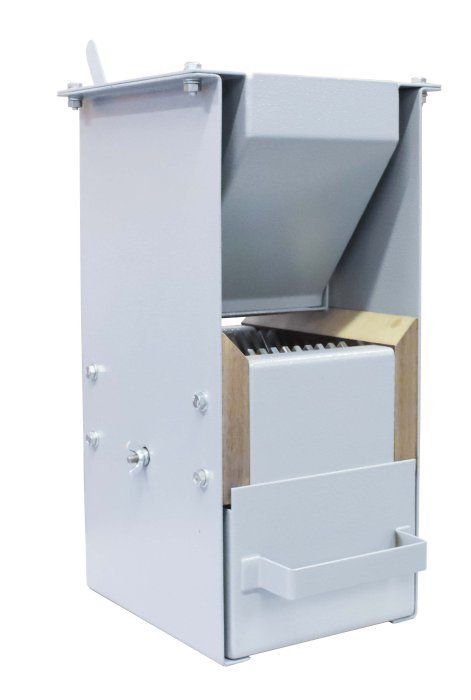

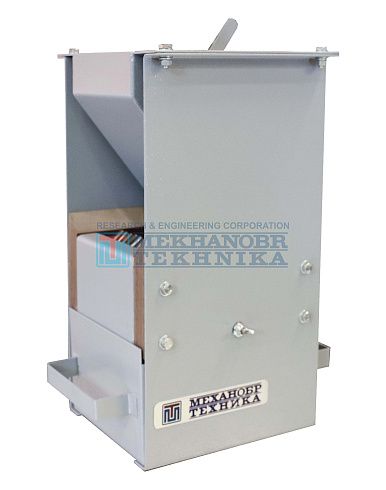

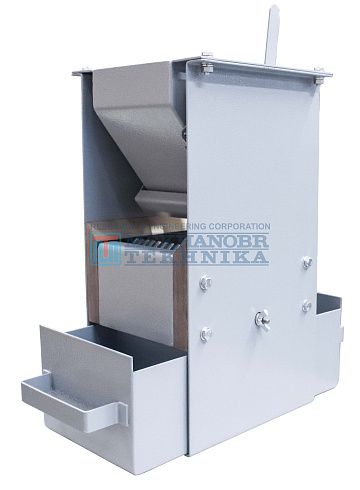

Chute sample splitter SR 5-24 (943RM-A) riffle
Price on request
Description
Specifications
| Specification | 943RM riffle |
| Bar width, mm | 5 |
| Number of bars, pcs. | 24 |
| Total width of riffle surfaces, mm | 120 |
| Number of riffles with the width of: | |
| 5 mm | 24 |
| 10 mm | 12 |
| 15 mm | 8 |
| Size of the piece for splitting with the riffle width of (mm): | |
| 5 mm | 3 |
| 10 mm | 6 |
| 15 mm | 8 |
|
Bowl size, l |
2.25 |
| Riffle widths used, mm | 5, 10, 15 |
| Overall dimensions, mm | |
| Length | 200 |
| Width | 280 |
| Height | 420 |
| Mass, kg | 10.5 |
