ADD crushing-splitting unit 60х100

Price on request

Description
Specifications

Description

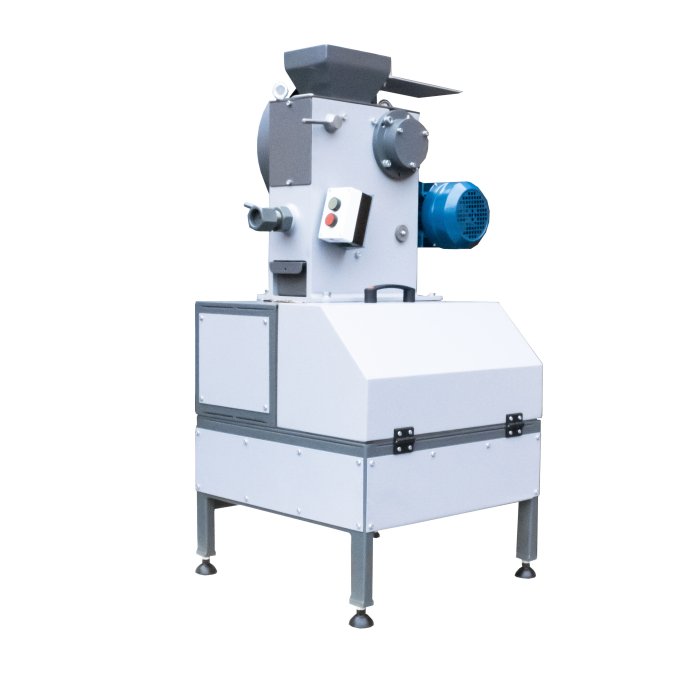

Crusher/Splitter ADD 60х100

Purpose:

Designed for crushing and splitting the geological samples of rocks and ores during their preparation for analytical and process research. It simultaneously provides for crushing and splitting the geological samples of rocks, ores, ceramics, firebricks, construction materials during their preparation for analytical research.

Characteristics:

It consists of conventional reliable laboratory jaw crusher and efficient crushed product splitter.

Delivery set:

jaw crusher JC 60х100 with splitter DPR-10
operating console.
Fast wearing parts: jaw plates, cheek plates.

For purchasing of the equipment you are interested in or for more detailed information, please contact us by phone +7 (812) 331-02-42.

Specifications

*Specification*	ADD 60х100
Feed opening size, mm	60х100
Feed size, mm, max.	50
Discharge opening, mm, up to	1-15
Efficiency, kg/h (depending on the material size), with 10 mm opening, max	150
Motor power, kW (crusher)	1.1
Motor power, kW (receiver)	0.25
Motor power, kW (Full volume of all sample receptacles, dm3)	10
Motor power, kW (concentration ratio)	1/2 to 1/8
*Overall dimensions, mm, up to*
Length	550
Width	580
Height	1200
Mass, kg	230

STOCK: time of manufacture to order - 3 months.

Length, mm	850
Height, mm	1,230
Width, mm	620
Mass, kg	310

Length, mm	1200
Height, mm	1500
Width, mm	640
Mass, kg	650
