Crusher/Splitter - ADD 150х250

On order

Price on request

Description
Specifications

Description

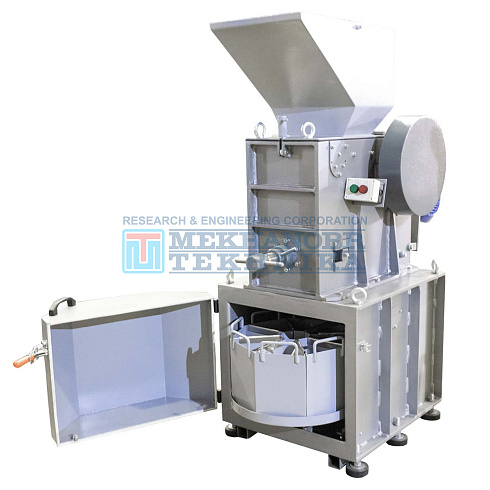

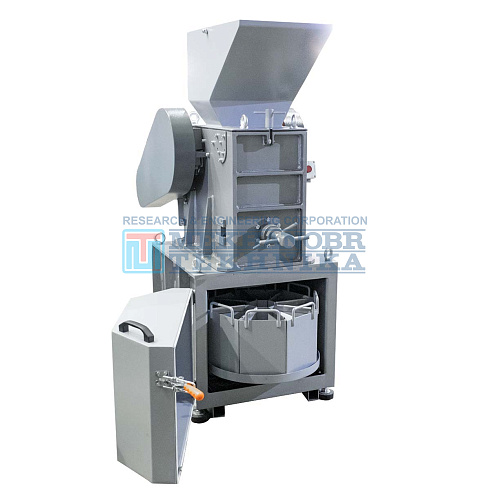

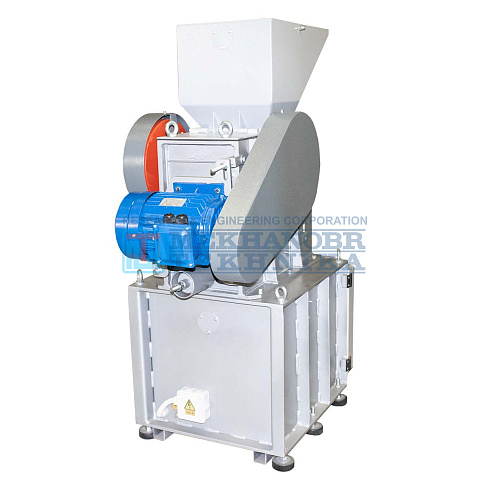

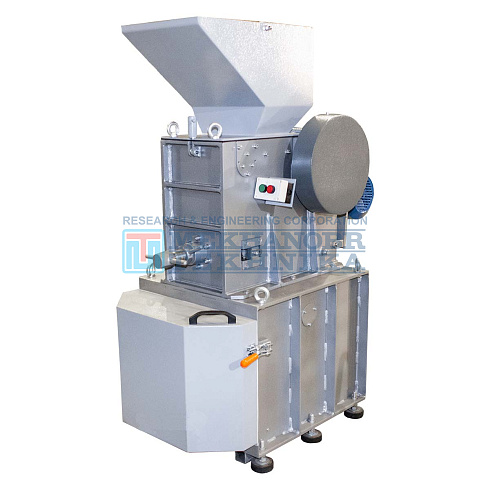

Crusher/Splitter ADD 150х250

Purpose:

Designed for crushing and splitting the geological samples of rocks and ores during their preparation for analytical and process research. It simultaneously provides for crushing and splitting the geological samples of rocks, ores, ceramics, firebricks, construction materials during their preparation for analytical research.

Characteristics:

It consists of conventional reliable laboratory jaw crusher and efficient crushed product splitter.

Delivery set:

jaw crusher JC 150х250 with splitter.
operating console.
Fast wearing parts: casing, blade liners.

For purchasing of the equipment you are interested in or for more detailed information, please contact us by phone +7 (812) 331-02-42.

Specifications

Specification	ADD 150х250
Feed opening size, mm	160х250
Feed size, mm, max.	130
Motor power, kW (crusher)	2.5
Motor power, kW (receiver)	0.25
Total volume of receptacles, dm3	30
Motor power, kW (concentration ratio)	1/2 to 1/8
Overall dimensions, mm, up to
Length	1200
Width	640
Height	1500
Mass, kg	650

Length, mm	550
Height, mm	1,200
Width, mm	580
Mass, kg	230

Length, mm	850
Height, mm	1,230
Width, mm	620
Mass, kg	310
