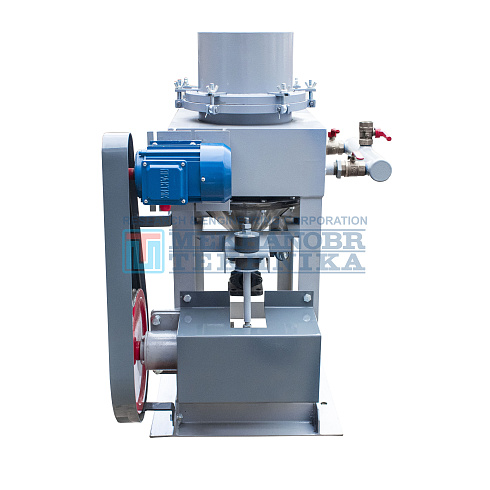

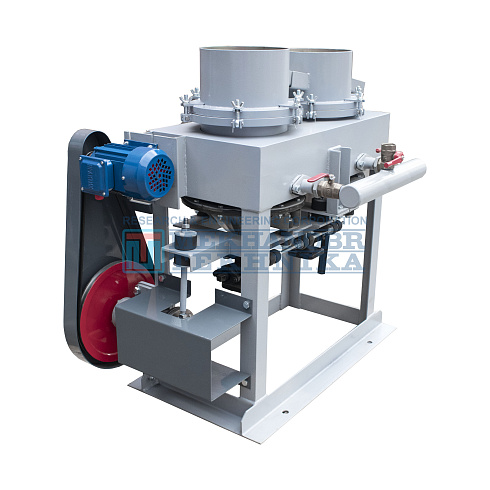

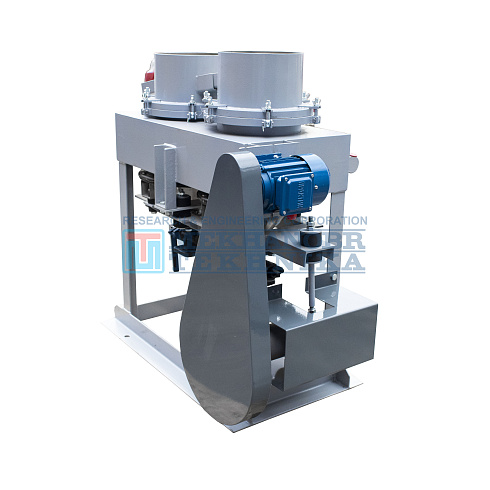

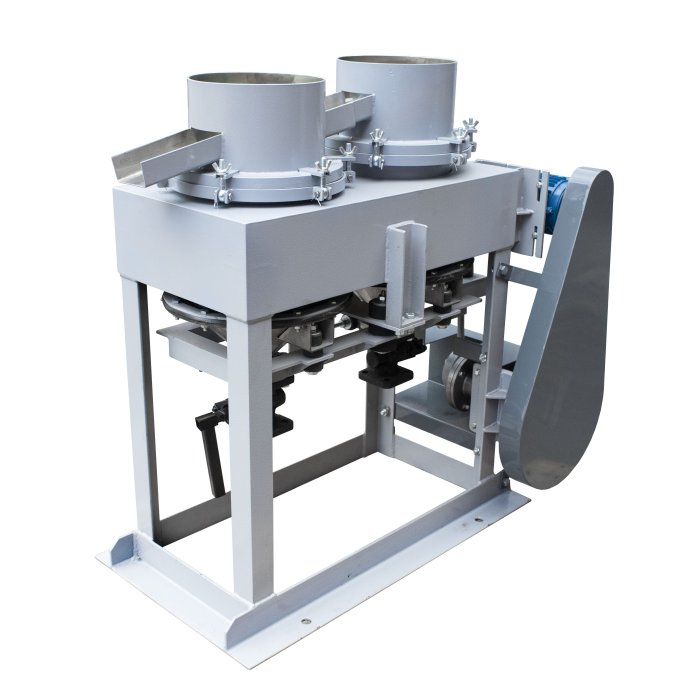

Designed for working with non-aggressive environments during jigging of minerals - ores and other rocks with the size of up to 12 mm in laboratory and industrial conditions.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.
| Specification | 52-ОТ |
| Capacity, kg/h | 200 |
| Screen area, m2 | 0.07 |
| Compartment width, mm | 220 |
| Compartment length, mm | 215 |
| Number of chambers, pcs. | 2 |
| Diaphragm stroke, mm | 0-21 |
| Rated power of the motor, kW, max | 0.25 |
| Power voltage, V | 380 |
| Pulse number, per min | 270-370 |
| Overall dimensions, mm | |
| Length | 963 |
| Width | 655 |
| Height | 930 |
| Mass, kg | 143 |
STOCK: time of manufacture to order - 3 months.
