Flotation machine FML 3 (240 FL)

On order

Price on request

Description
Specifications

Description

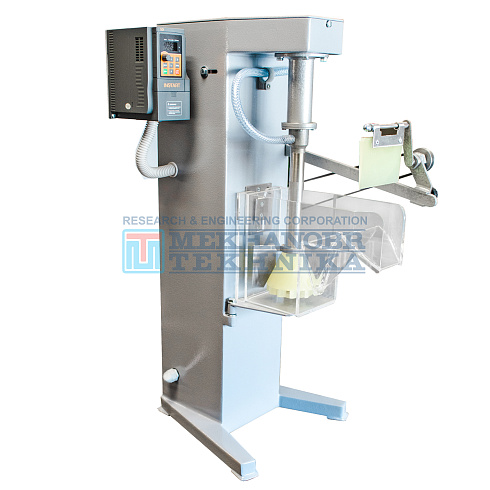

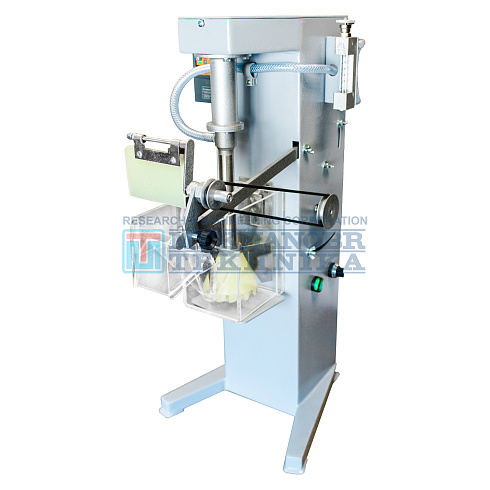

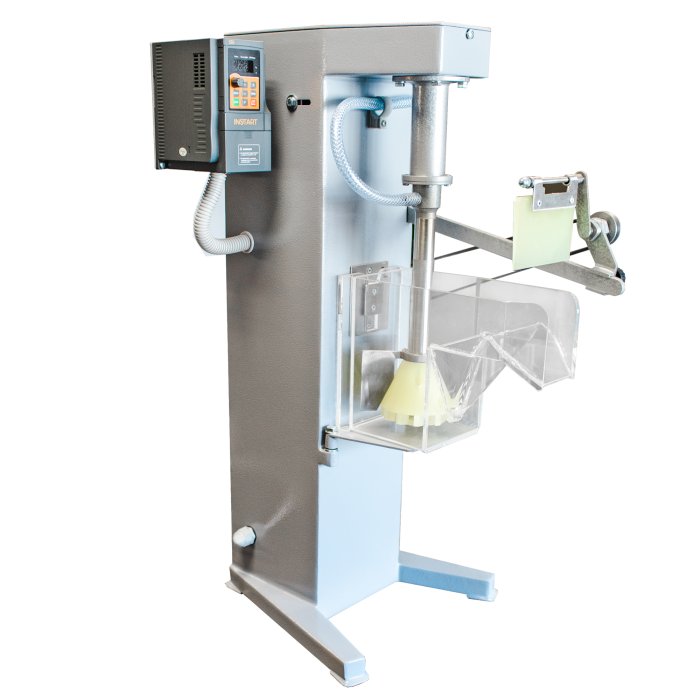

FML-3 (240 FL) flotation machine

Purpose:

The machine is designed for research of ore preparation characteristics by foam flotation with the solid content in pulp of up to 40% by mass and with the size less than 0.074 mm, over 50%, at pH from 2 to 12.

The FML-3 flotation machine is designed for foam flotation simulation in periodical mode. It is used for research of ground ore preparation characteristics and waste water purification by flotation.

Delivery set:

FML-3 flotation machine, operation manual, data sheet.
The delivery set includes 3 chambers: 1.5; 2.0; 3.0

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	FML 3 (240 FL)
Chamber useful capacity, l	1.5; 2.0; 3.0
Impeller diameter, mm	70
Impeller speed, s-1	15-40
Amount of air taken by impeller at the highest rate, l/s, min	0.07
Rated installed power, kW	0.18
Power supply voltage, V	220
*Overall dimensions, mm*
Length	480
Width	380
Height	760
Mass, kg	35

Stock: the flotation machines are available from stock.

Length, mm	420
Height, mm	600
Width, mm	380
Mass, kg	27
