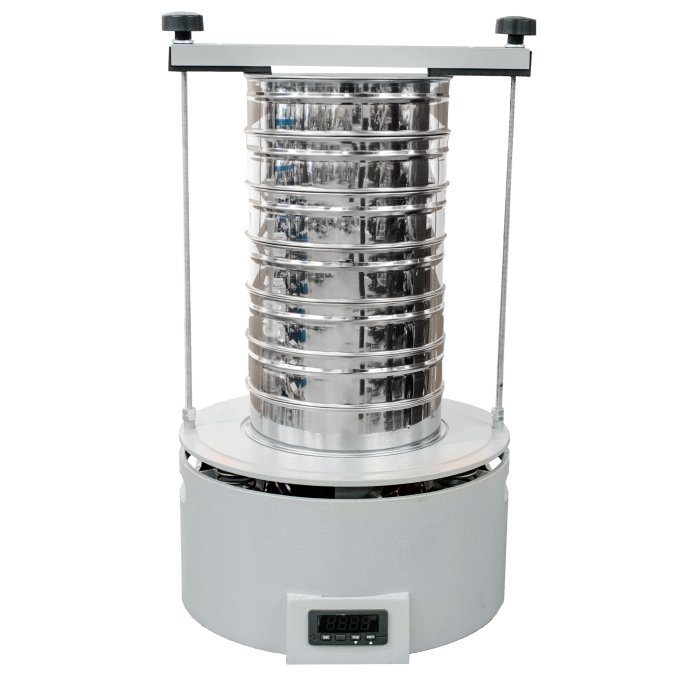

Vibrating testing sieve ASV-200

On order

Price on request

Description

For dry sieving of loose materials into several classes by size in periodical mode.

* vibration motor with timer can be supplied.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	ASV-200
Number of sieves, up to	8/6
Sieve height, mm	38/50
Feed size, mm, up to	5
Sample mass, g, up to	200
Sieve diameter, mm	200
Net cell size, mm	0.04-5
Drive plate oscillation amplitude (depending on mass mounted on the plate), mm	0.25...1.5
Oscillation frequency, Hz	25
Electric motor supply voltage, v	220
Drive power, kW	2х0.025
*Overall dimensions, mm*
Length	385
Width	350
Height	610
Mass, kg	26*

* Completed with 6 sieves

Stock: time of manufacture to order - 2.5 months.
