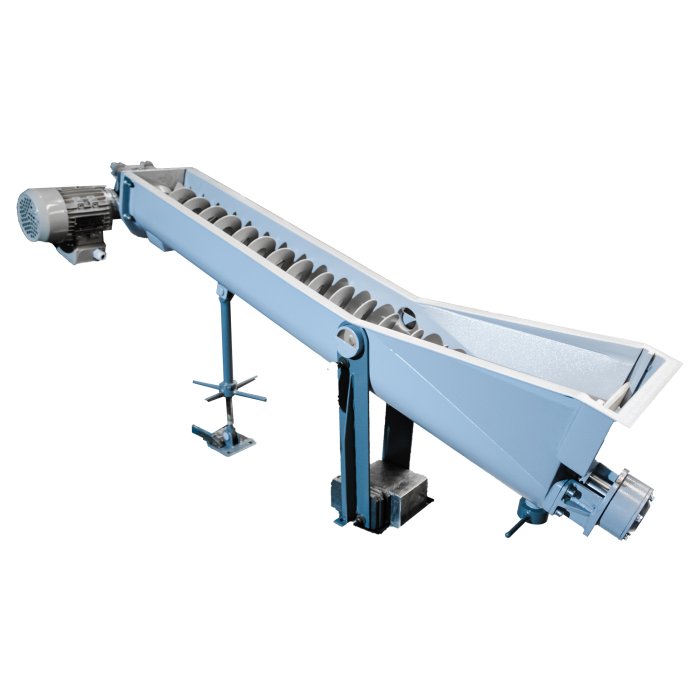

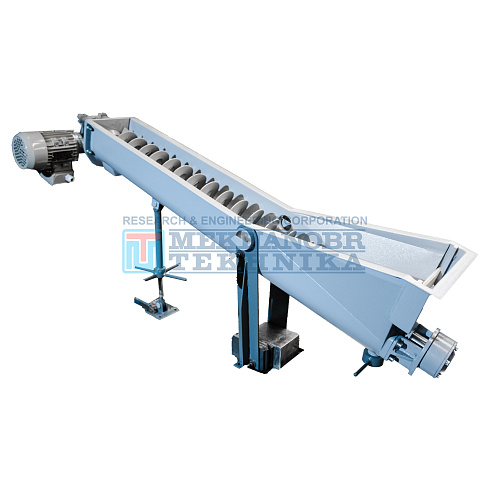

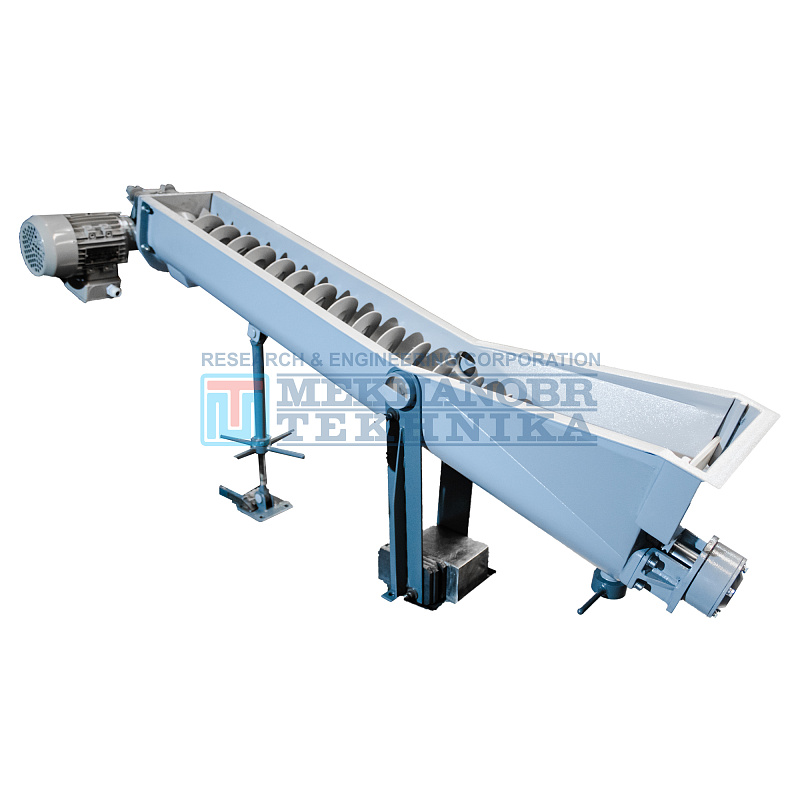

Spiral classificator 72KR

On order

Price on request

Description

Purpose:

Designed for separation in water medium (hydraulic classification) of materials by sizes and density in the continuous mode.

Classifier assy, frequency-to-current converter.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

*Specification*	72KR
Efficiency with separation size of 0.15 mm, kg/h, min (in discharge)	260
Efficiency with separation size of 0.15 mm, kg/h, min (in sands)	500
Spiral diameter, mm	150
Tank length, mm	1200
Spiral stroke, mm	110
Slope of basin, degree, within	10-30
Rated power of the motor, kW, max	0.25
*Overall dimensions, mm*
Length	1460-1540
Width	320
Height	580-870
Mass, kg	57,3

STOCK: time of manufacture to order - 3 months.
