Wet roll separators (EVM)
| Efficiency, t/h | Feed size, mm | Magnetic induction in the working area on the roll surface, T | Roll working part diameter, mm | Roll working part length, mm | Number of rolls, pcs. | Rotor speed, min-1, within | Drive power, kW | Electromagnetic system consumed power, kW | |
|---|---|---|---|---|---|---|---|---|---|

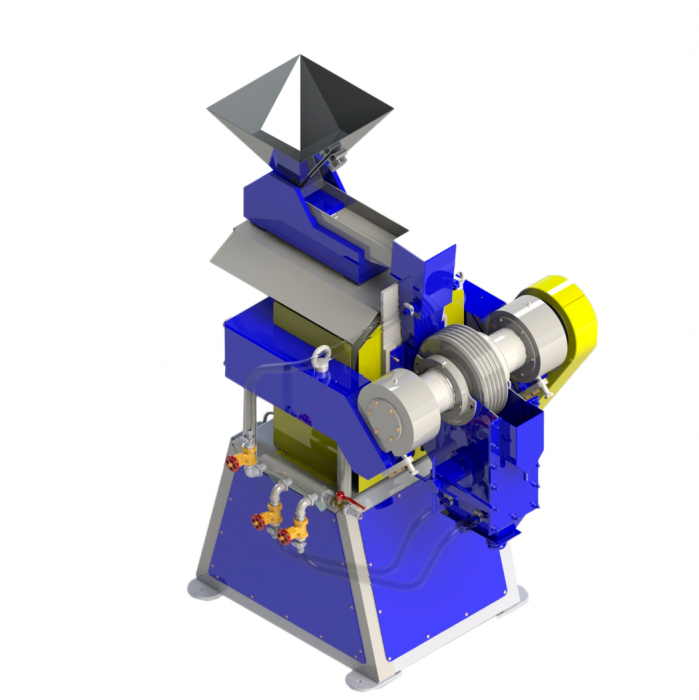

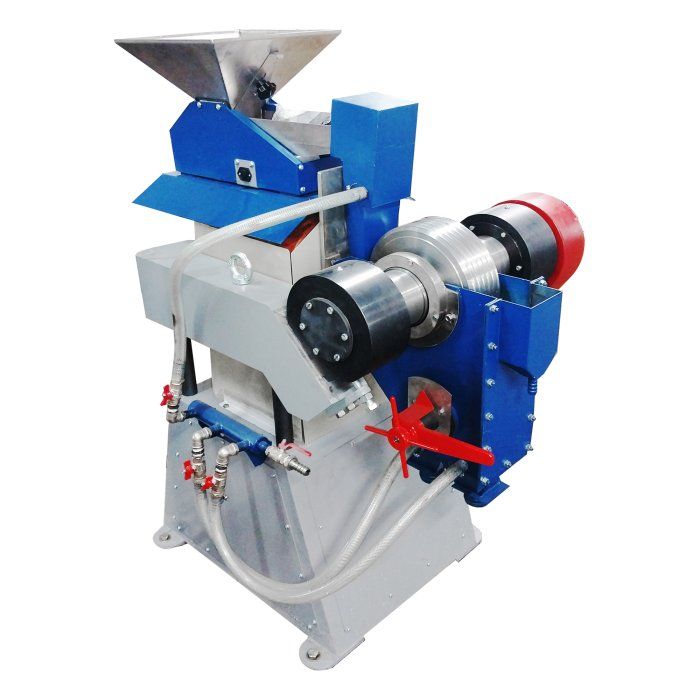

| EVM 28/9 | Efficiency, t/h up to 0.4 | Feed size, mm 0,1...4 | Magnetic induction in the working area on the roll surface, T 1.7 | Roll working part diameter, mm 280 | Roll working part length, mm 90 | Number of rolls, pcs. 1 | Rotor speed, min-1, within 30-100 | Drive power, kW 0.75 | Electromagnetic system consumed power, kW 0.8 |
| EVM 36/50 | Efficiency, t/h up to 2.5 | Feed size, mm up to 0,1...4 | Magnetic induction in the working area on the roll surface, T 1.7 | Roll working part diameter, mm 360 | Roll working part length, mm 500 | Number of rolls, pcs. 1 | Rotor speed, min-1, within 22-56 | Drive power, kW 4.0 | Electromagnetic system consumed power, kW 1.8 |
| 2EVM 36/100 | Efficiency, t/h up to 10 | Feed size, mm 0,1...4 | Magnetic induction in the working area on the roll surface, T 1.7 | Roll working part diameter, mm 360 | Roll working part length, mm 1000 | Number of rolls, pcs. 2 | Rotor speed, min-1, within 37 | Drive power, kW 2x5,5 | Electromagnetic system consumed power, kW 8 |
