Tube analyzer 298 SE

On order

Tube analyzer

Price on request

Description
Specifications

Description

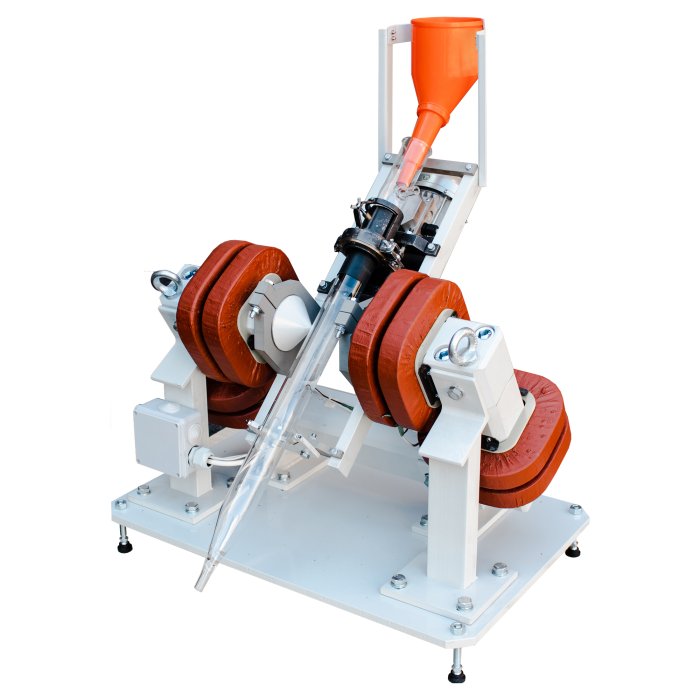

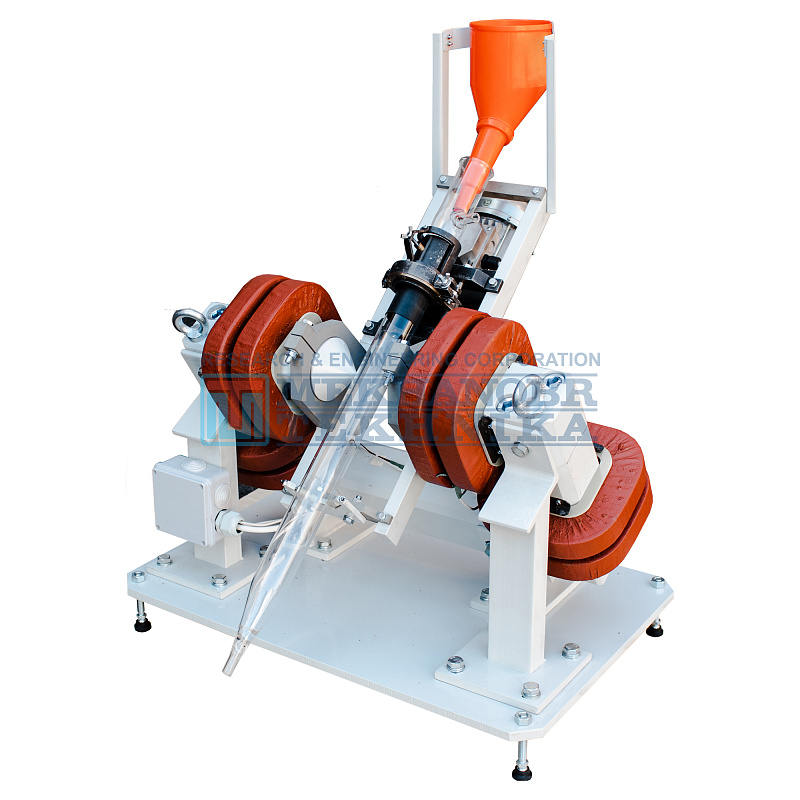

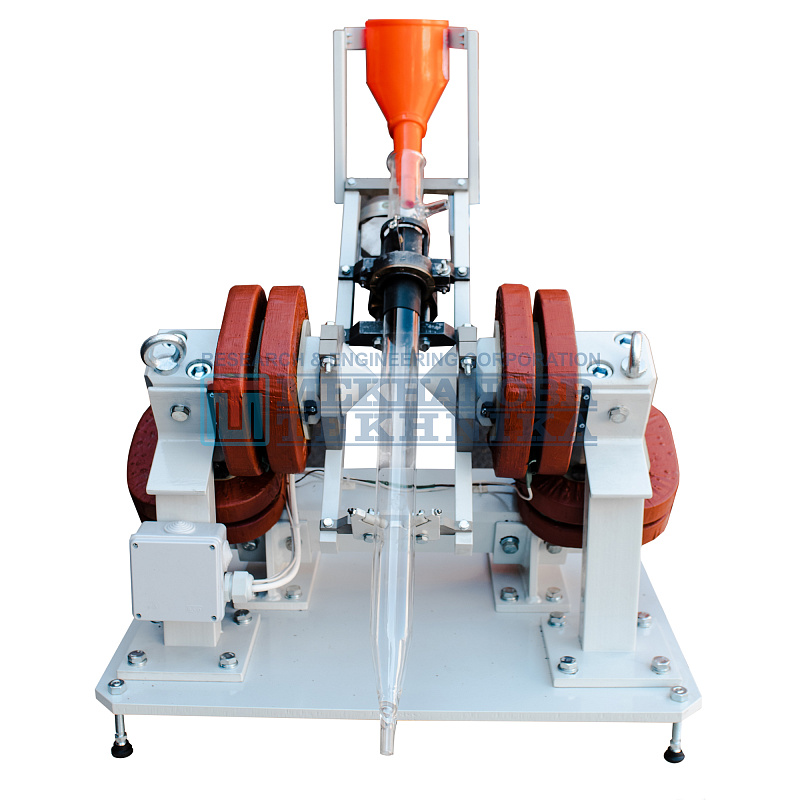

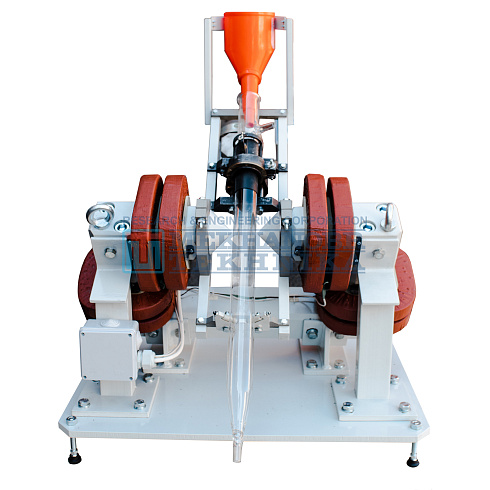

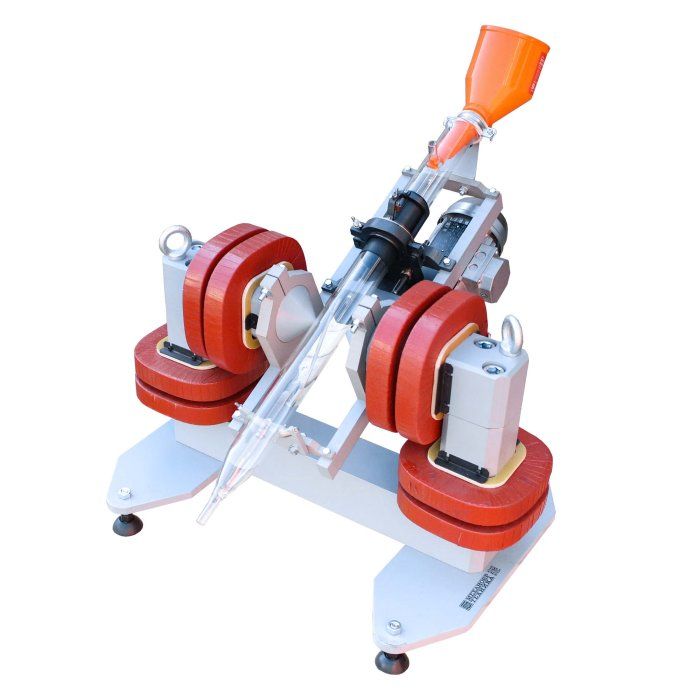

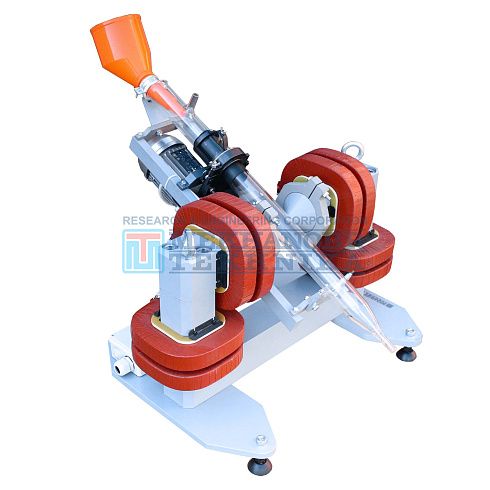

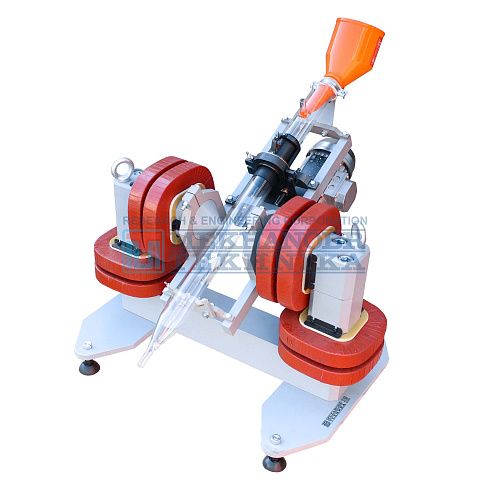

Tube analyzer

Scope of application

For wet magnetic analysis of strongly-magnetic ores and magnetic separation products, as well as for determination of strongly-magnetic fraction content in various products.

Delivery set

Analyzer 298 SE, remote control, operation manual, data sheet.

Foundation requirements

No specific foundation requirements.

Dynamic loads

Dynamic loads are not rated.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

Tube diameter, mm	52
Magnetic induction in the center of the magnet gap, Т, min	0.2
Supply voltage, V	380
DC voltage of excitation winding, V, max	80
Rated power of the drive, kW, max	0.1
Magnet winding current, А, max	5
Tube stroke, mm	40
Feed size, mm, max.	0.5

Length, mm	970
Height, mm	770
Width, mm	720
Mass, kg	170

* − the induction value is specified for the electromagnetic system excitation current of 5А, the operation is also possible with the excitation current of 6.5А in short-term mode.
