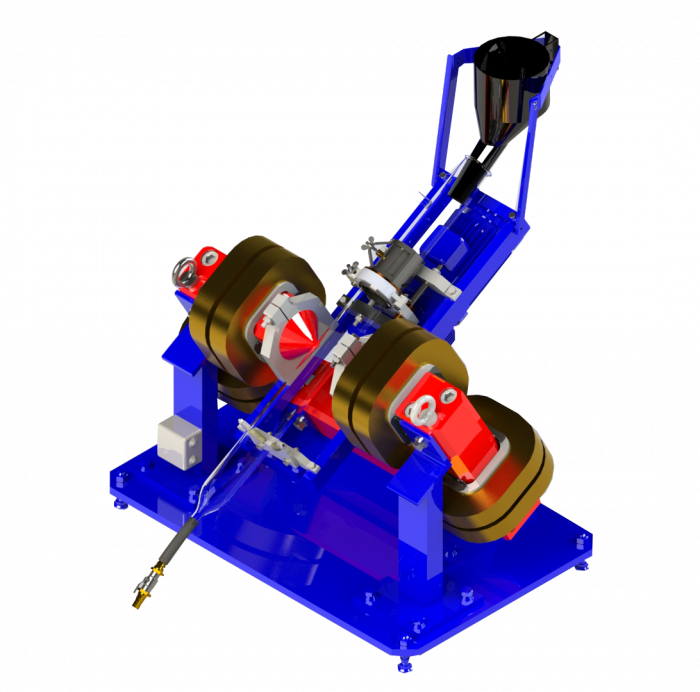

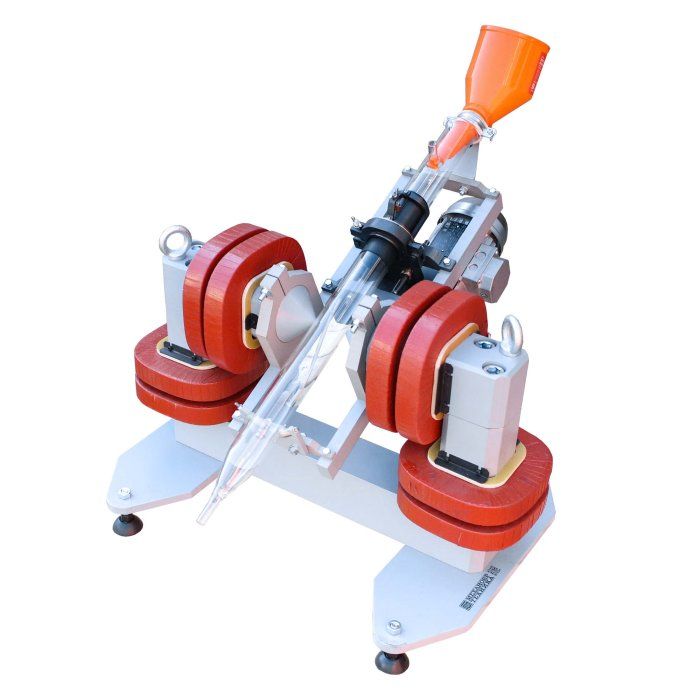

Tube analyzer
| Tube diameter, mm | Magnetic induction in the center of the magnet gap, Т, min | Supply voltage, V | DC voltage of excitation winding, V, max | Rated power of the drive, kW, max | Magnet winding current, А, max | Tube stroke, mm | Feed size, mm, max. | |
|---|---|---|---|---|---|---|---|---|
| Tube analyzer | Tube diameter, mm 52 | Magnetic induction in the center of the magnet gap, Т, min 0.2 | Supply voltage, V 380 | DC voltage of excitation winding, V, max 80 | Rated power of the drive, kW, max 0.1 | Magnet winding current, А, max 5 | Tube stroke, mm 40 | Feed size, mm, max. 0.5 |
