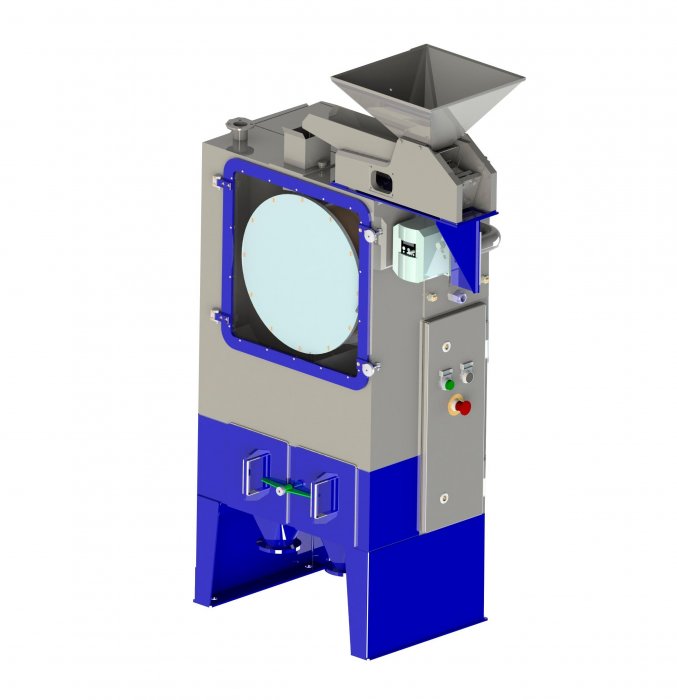

Dry drum separators (PBST)
| Efficiency, t/h | Feed size, mm, max. | Magnetic induction in the working area on the drum surface, T, min. / BaFe magnets | Magnetic induction in the working area on the drum surface, T, min. / NdFeB magnets | Drum speed, min-1 | Drum diameter, mm | Drum working part length, mm | Motor power, kW | |
|---|---|---|---|---|---|---|---|---|
| PBST 30/5 | Efficiency, t/h up to 0,05 | Feed size, mm, max. 10 | Magnetic induction in the working area on the drum surface, T, min. / BaFe magnets 0.13 | Magnetic induction in the working area on the drum surface, T, min. / NdFeB magnets 0.35 | Drum speed, min-1 0-200 | Drum diameter, mm 300 | Drum working part length, mm 50 | Motor power, kW 0.37 |
| PBST 40/10 | Efficiency, t/h up to 0.5 | Feed size, mm, max. 20 | Magnetic induction in the working area on the drum surface, T, min. / BaFe magnets 0.13 | Magnetic induction in the working area on the drum surface, T, min. / NdFeB magnets 0.35 | Drum speed, min-1 0-200 | Drum diameter, mm 400 | Drum working part length, mm 100 | Motor power, kW 0.55 |
| PBST 63/50 | Efficiency, t/h up to 8 | Feed size, mm, max. 35 | Magnetic induction in the working area on the drum surface, T, min. / BaFe magnets 0.13 | Magnetic induction in the working area on the drum surface, T, min. / NdFeB magnets 0.35 | Drum speed, min-1 55-275 | Drum diameter, mm 600 | Drum working part length, mm 500 | Motor power, kW 2.2 |
| PBST 63/100 | Efficiency, t/h up to 16 | Feed size, mm, max. 40 | Magnetic induction in the working area on the drum surface, T, min. / BaFe magnets 0.13 | Magnetic induction in the working area on the drum surface, T, min. / NdFeB magnets 0.35 | Drum speed, min-1 55-275 | Drum diameter, mm 600 | Drum working part length, mm 1000 | Motor power, kW 4 |
