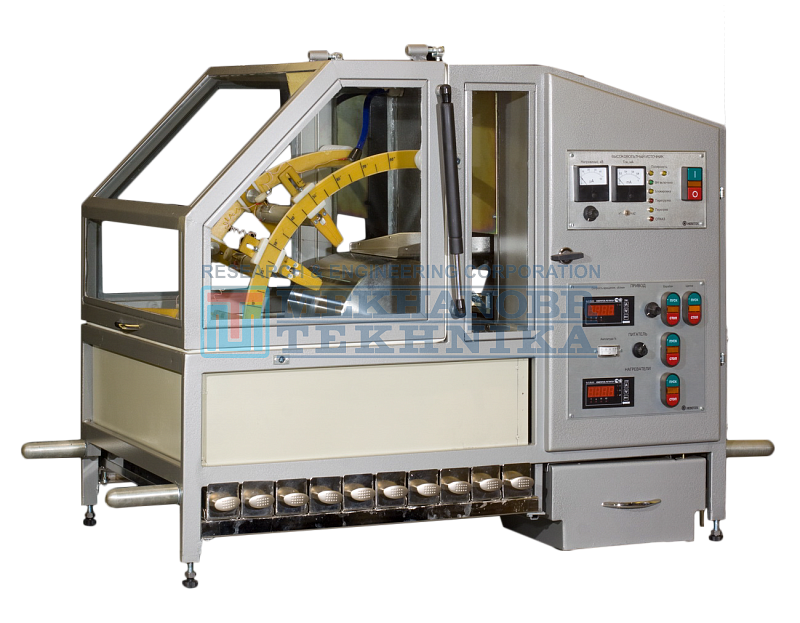

ELKOR-1 electrostatic drum separator
Purpose
The ELKOR-1 electrostatic drum separator is designed for processing of light samples of hard loose materials which components have the electrical conductivity (metal-nonmetal, conductive-nonconductive minerals). The separator can operate both in periodical and continuous mode.
The separator has no negative environmental impact.
Characteristics
Production of high-quality concentrate with high recovery of useful component, low energy capacity, environmentally friendly.
Scope of application of ELKOR-1 separator
- extraction of metal concentrate from the secondary raw material (electrical and radio equipment, cable waste, and so on);
- rare and precious metals rough concentrate upgrading;
- production of superconcentrates of ferrous ores;
- regeneration of dielectric materials (for example, plastics during their re-use);
- metal powder purification;
- non-metal powder purification (for example, quartz);
- non-ferrous ore separation (feldspar, specular stone, wollastonite);
- dust removal from the materials;
- materials classification by form;
- food loose products purification.
Delivery set
Elkor-1 separator, operation manual, data sheet documentation for purchased completing parts
Foundation requirements
No specific foundation requirements.
Dynamic loads
Dynamic loads are not rated.
