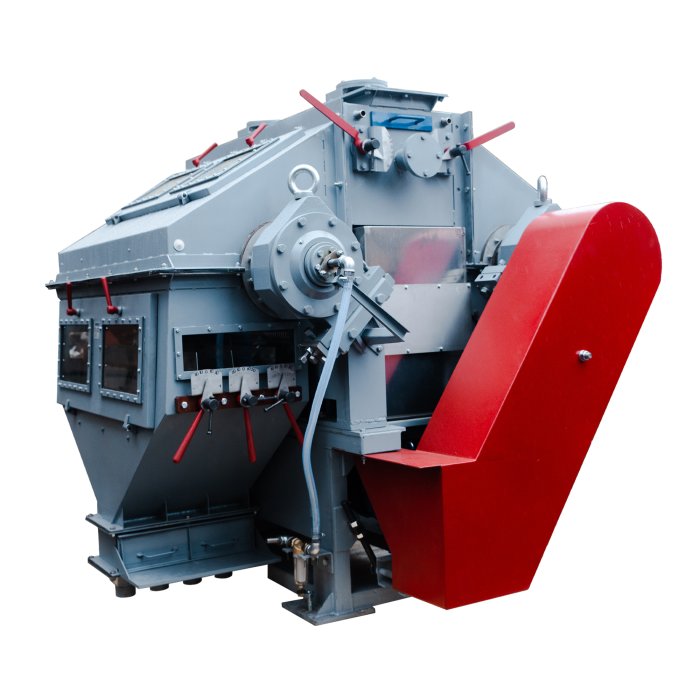

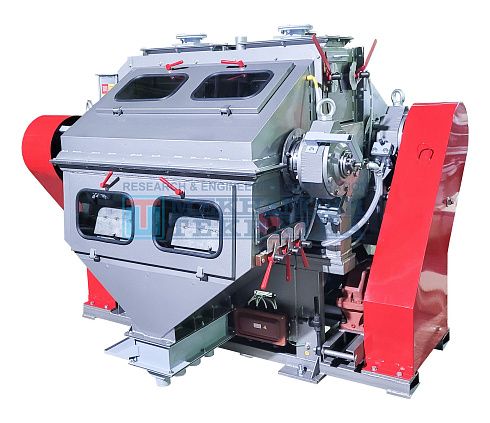

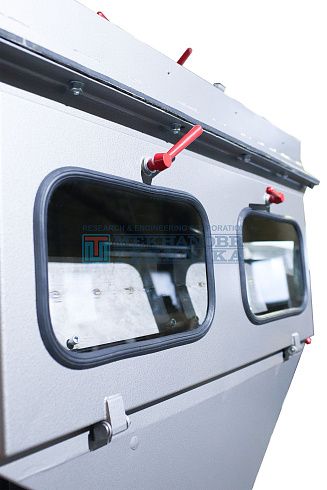

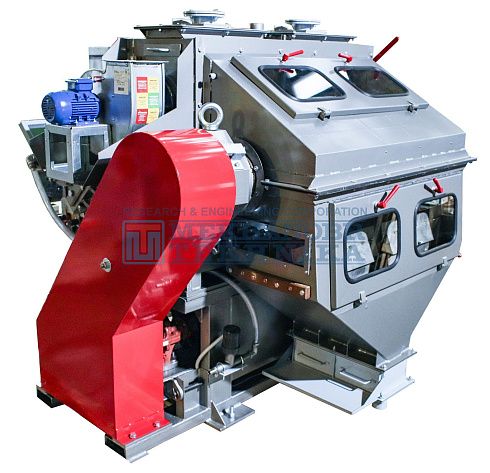

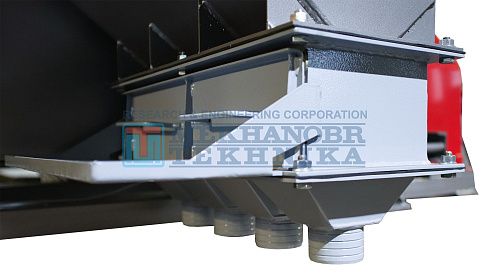

Dry roll separator 2EVM 36/100
Scope of application
Loose materials with the size of -6+0.075 mm (class -0.075 mm, max 20 %):
-
materials purification from magnetic additives (abrasives, quartz sand, ceramics, feldspar, molding sand, etc.);
-
various ore concentration to obtain the products similar to monomineralic ones in content (andradite, nepheline, pegmatite, wollastonite, vermiculite, etc.) per operation;
-
rough concentrate upgrading (ilmenite, wolframite, tantalic, stannane, loparite, manganese, diamond-containing, gold-containing, zircon, cyanite, rutile, niobium (pyrochlore), baddeleyite);
-
production of up to products per operation that are distinguished by their magnetic properties;
-
laboratory research.
Delivery set
2EVS-36/100 type separator, operating console, operation manual, data sheet.
Foundation requirements
When the separator is mounted on the foundation, the horizontal surface of the roll should be ensured. Misalignment should not exceed 5 mm along the roll length.
Dynamic loads
Dynamic loads are not rated.
The separator complies with GOST 10512-93 “Magnetic and Electromagnetic Separators. General Specifications”.
Stock
Time of manufacture to order - 4 months.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.
