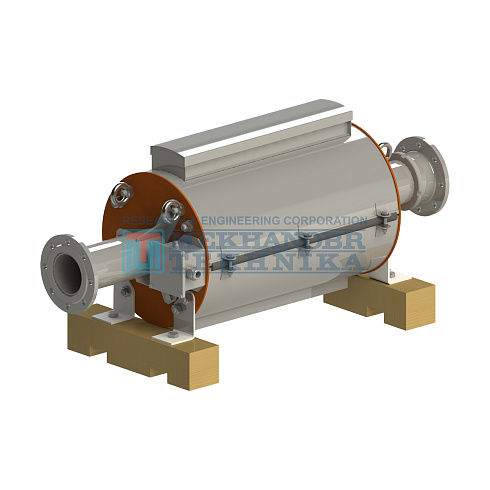

Demagnetizer AR-50

Demagnetizer

Price on request

Description
Specifications

Description

Demagnetizer AR-50

Scope of application

Deflocculation of strongly magnetic particles (magnetite, ferrosilicium, etc.) to improve classification, deshaling, filtration, as well as to ensure stability of heavy ferromagnetic suspensions.

Delivery set

Demagnetizer ARM-50, operation manual, data sheet.

Foundation requirements

No specific foundation requirements.

Dynamic loads

Dynamic loads are not rated.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

Tube diameter, mm	50
Max magnetic field induction in the working area of the unit without pulp (amplitude), G, min	700
AC power / active, W	150
AC power / full, W	3.5
Rated voltage of single-phase AC, V	380
Rated current at 50 Hz and witjout pulp, А	9.2
Efficiency (in pulp), m3/h	25

Length, mm	960
Height, mm	430
Width, mm	330
Mass, kg	73
