AR-350

Price on request

Description
Specifications

Description

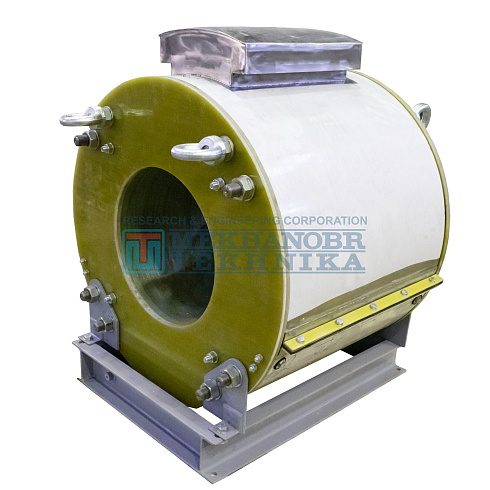

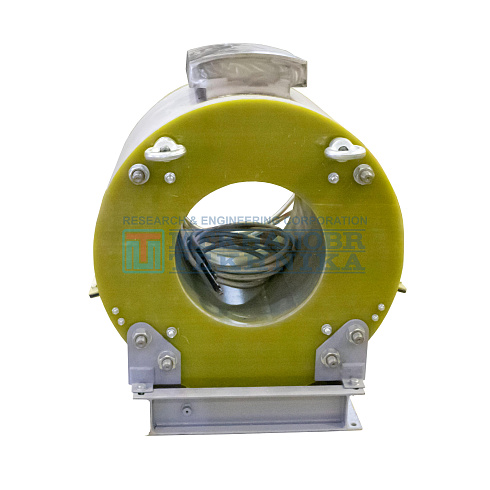

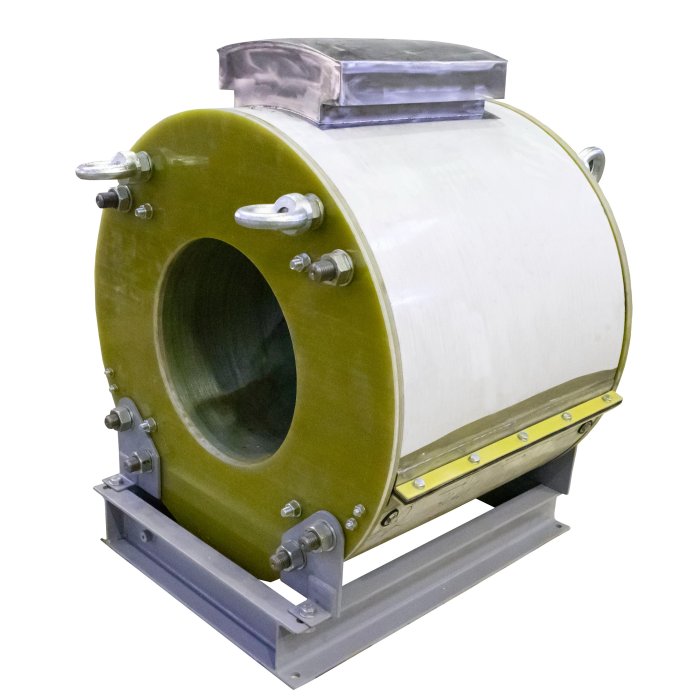

Demagnetizer AR-350

Scope of application

It is designed for magnetite pulp demagnetizing to remove flocculation of strongly magnetic particles preventing material separation by size during classification.

Delivery set

Demagnetizer AR-350, operation manual, data sheet.

Foundation requirements

No specific foundation requirements.

Dynamic loads

Dynamic loads are not rated.

For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.

Specifications

Tube diameter, mm	352.6
Max magnetic field induction in the working area of the unit without pulp (amplitude), G, min	500
AC power / full, W	65
Rated voltage of single-phase AC, V	380
Rated current at 50 Hz and witjout pulp, А	140
Efficiency (in pulp), m3/h	1200

Length, mm	2000
Height, mm	1050
Width, mm	894
Mass, kg	683
