Hidraulic screens
| Amplitude of oscillations, mm | Screen length, mm | Size of separation, mm | Max. feed solids size, mm | Feed rate (solids intake), t/h | Slope angle, degree | Specified motor power, kW | Frequency of oscillations, Hz | Screen width, mm | |
|---|---|---|---|---|---|---|---|---|---|
| GSS -0,8 | Amplitude of oscillations, mm - | Screen length, mm 1550 | Size of separation, mm 0.07-1.0 | Max. feed solids size, mm 3.0 | Feed rate (solids intake), t/h 2.5-30 | Slope angle, degree 30-40 | Specified motor power, kW - | Frequency of oscillations, Hz - | Screen width, mm 760 |
| GSS -1,25 | Amplitude of oscillations, mm - | Screen length, mm 2000 | Size of separation, mm 0.07-1.0 | Max. feed solids size, mm 3.0 | Feed rate (solids intake), t/h 5.0-40 | Slope angle, degree 30-40 | Specified motor power, kW - | Frequency of oscillations, Hz - | Screen width, mm 1250 |
Designed for classification of fine ground materials in the pulp flow.
Scope of application:
- protective screening before operations performed with the use of the equipment strictly limiting the upper threshold of the feed size;
- process cycles of the metal content upgrading for non-ferrous and rare metal during enrichment;
- process charts of ore preparation and gold- and diamond-containing ore upgrading;
- flush argillaceous ore classification;
- process charts of quartz deep enrichment for high-quality glass production;
- processing of different fine non-ferrous materials.
Characteristics

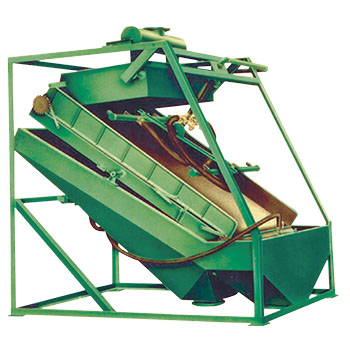

Hydraulic screen with flexible synthetic sieve GSS-0,8; GSS-1,25- screening surface is made of flexible synthetic monofiber sieve cloth that provides for effective screening area and self-cleaning properties;
- spray system provides for efficient sieve spraying with maximum water consumption of 5 m3/h (GSS-0,8) and 6-8 m3/h (GSS-1,25);
- no power consuming moving parts and driven devices;
- quick change of a worn screen cloth is provided.
