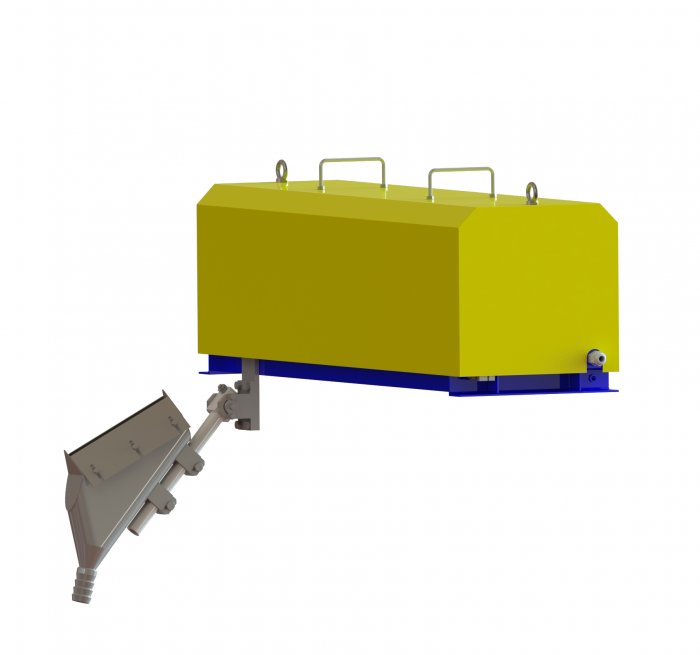

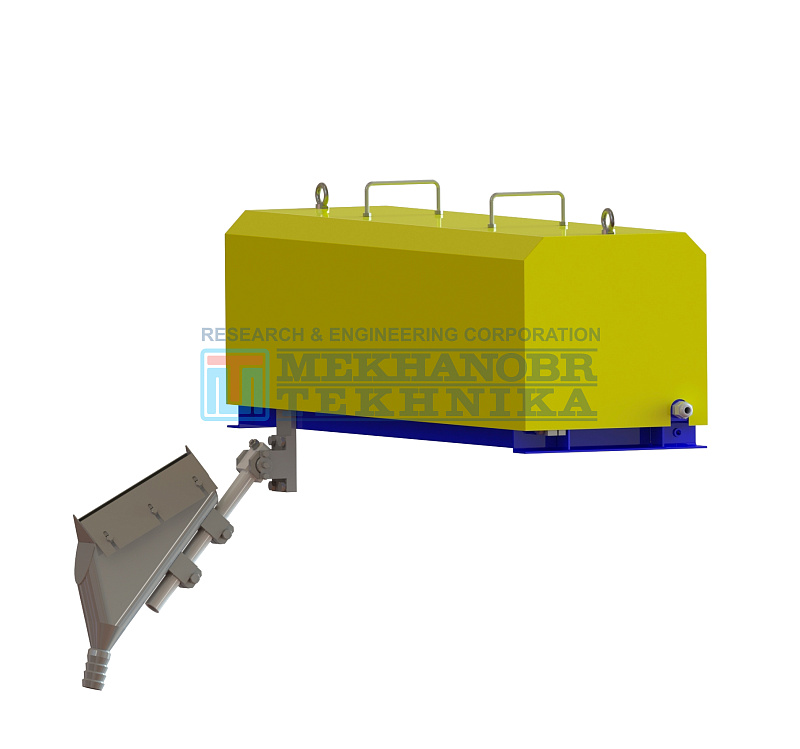

The sampler is designed for pulp sampling according to GOST 14780 at concentration plants and can be used in automatic sampling systems and sample transportation to the express laboratory.
Sampling is made from gravity-flowing process flows from the chutes in the points of their fracture and jet drop.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.
| Characteristics | Value |
| Blade working stroke during testing (at constant speed), mm | 800±3 |
| Blade speed, m/s | 0.55±0.05 |
| Number of cutoffs per hour | 1-360 |
| Blade length, mm. | 250±1 |
| Aperture width adjustment limits, mm | 2-35 |
| Blade turn angle for setting on the flow in the vertical plane, degree, max | 90 |
| Test pulp flow rate, m3/h, max. | 200 |
| Solid content in pulp, %, max | 60 |
| Max particle size, no more than | 1/2 of the blade aperture width |
| Test flow section, mm, max: width / height | 600 / 120 |
|
Sampler drive: motor type power, kW speed, rpm reducing gear type |
AIR63V4U3 0.37 1,420 2Ч40-10-52-1-2-У4 |
| Power supply voltage | ≈380V, 3 phases |
| Overall dimensions (without knife): | |
|
length, mm |
1204 |
| height ,mm | 444 |
| width, mm | 362 |
| Mass, kg | 90 |
