The electromagnetically driven feeder is designed for uniform controlled supply of various materials.

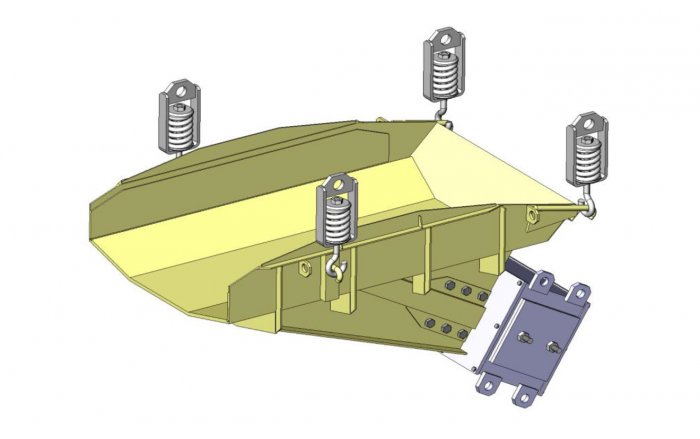

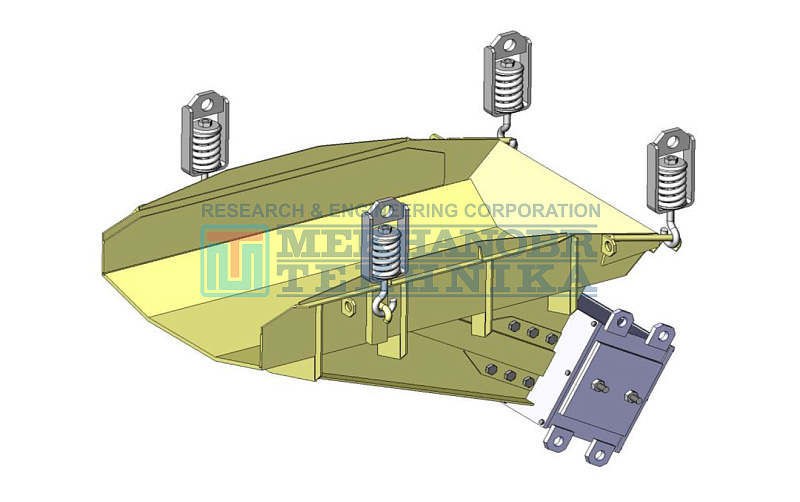

Electrical vibrating feeder assy, control unit, suspension spring (4 pcs.)
The efficiency is controlled from the control unit or cabinet supplied with the feeder.
Direct connection of the feeder to the mains (without control unit) is not allowed.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.
| Tray length, mm | 1500 |
| Transported material size, mm, max. | 250 |
| Mass, kg | 1350 |
| Max amplitude of tray oscillations, mm | 0.6 |
| Max feeder efficiency, m3/h, at the tray slope of 4°* | 90 |
| Magnet winding current, А, max | 12 |
| Tray width, mm | 950 |
| Length, mm | 1880 |
| Height, mm | 1120 |
| Width, mm | 1180 |
| Mass, kg | 1350 |
*Measured in dry sand (sand density of 1.52 kg/dm3). When the feeder trays slope increases by 8о, and the qualitative outflow of material from the hopper is ensured, the efficiency increases by 25% of the nominal value.
