Feeders
REC "Mekhanobr-Tekhnika" manufactures and supplies the PE electrical vibrating feeders for dosed supply of various piece and loose materials.
REC "Mekhanobr-Tekhnika" has over 50-year experience in creation of vibrating feeders with electromagnetic drive.
Example of the name explanation: PEU5×16 (PEVU 500/300х1600-30):
-
Electrical vibrating feeder with covered tray
-
Tray width — 500 mm, length — 1 600 mm.
-
Letter “V” in marking denotes top location of the drive.
-
300 - tray border height
-
30 - efficiency in m3/h
Design and operating principle

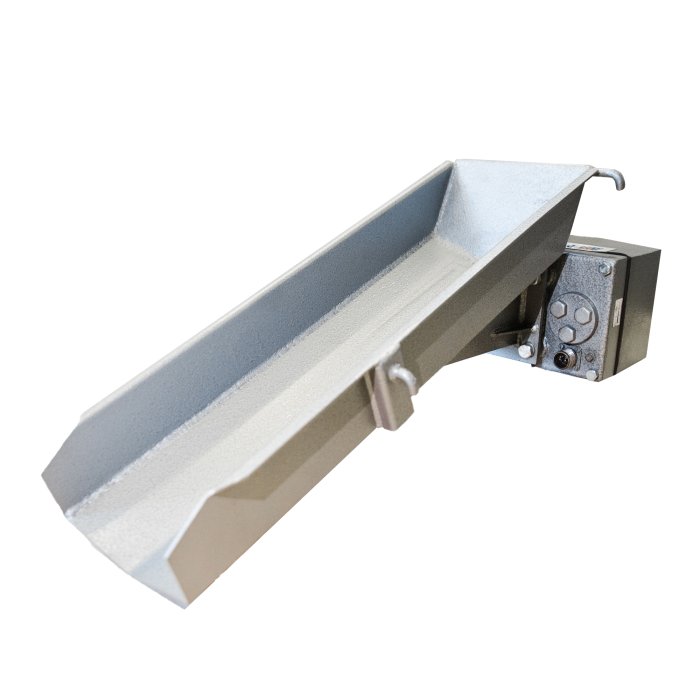

The electrical vibrating feeder consists of the tray lined with wear-resistant steel sheets, electromagnetic vibrating exciter (vibration motor) and vibration isolator. The feeder is connected to the 380V AC mains via the control unit or cabinet .
The material moves over the tray under the effect of forces occurring from straight-line oscillations of the tray. The oscillation amplitude is set depending on the required efficiency.
Advantage of vibrating feeders by REC "Mekhanobr-Tekhnika"
- The service life of the vibrating feeders is minimum 10 years.
- Low energy consumption.
- Accurate adjustment of material supply from the hopper.
- Wide range of control units and cabinets (batch and continuous weighing, installation of the tray oscillation sensor).
- Lining of heavy feeder trays with Hardox 400 wear-resistant steel.
- Top or bottom location of the vibration motor.
- Manufacture of vibrating feeders with the trays of various design and sizes, including those different from given in table.
- Open or closed trays.
- The PE feeders are of similar design and completely replaceable with the vibrating feeders by SPC Vibrotekhmash CJSC according to the setting and connecting dimensions.
Recommendations for equipment selection
- Determine the necessary efficiency of the vibrating feeder.
- Determine the tray dimensions: width, height, length; closed or open tray.
- The tray width can be by 3-4 times more than the maximum piece size of the transported material.
- Determine the vibration motor position - upper or lower.
- Select the control unit or cabinet.
When installing the feeder control unit in a dusty, dirty room, it is recommended to use the ShUV control cabinets of IP 55.
The feeders can be completed with the control units BUV - 1ТMm, BUVP-1 ТМm, BUVN-1Тm, BUVN-1Т-Dsh, BUVN-2Т-Dsh of IP20 and control cabinets ShUV-1Т, ShUVN-1Т, ShUVN-1Т-D, ShUVN-2Т-D of IP54.
For purchasing the equipment or for more detailed information, don’t hesitate to contact us +7 (812) 331-02-42.
REC Mekhanobr Tekhnika reserves the right to change the equipment specifications.
